| Interface Options | Ethernet, Parallel, Serial (RS-232), USB, USB Host, Wi-Fi. |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 5 |
| Model Name | E-4206P |
| Print Resolution | 203 dpi |
| Print Speed | 6 ips |
| Printer Type | Desktop |
| Printing Technology | Direct Thermal |

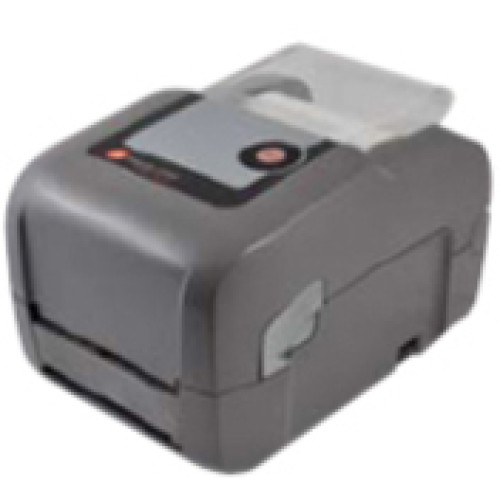

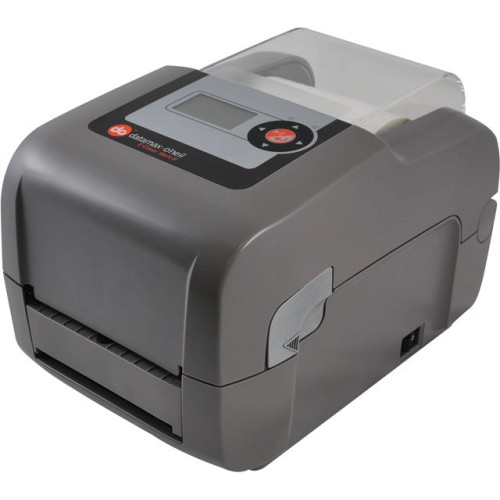

Datamax-O'Neil E-4206P Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.25"
- Recommended Use: Label Print
- Features:
- Real Time Clock
- Tear Bar
- Mirror Printing
- Barcode Symbology Supported:
- Code 3 of 9
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- POSTNET
- UPC 2 and 5 Digit Addendums
- Code 93
- K-Mart NON EDI
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- Data Matrix
- QR Code
- Aztec Code
- GS1 DataBar
- TCIF
- Micro PDF-417
- TLC 39
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Datamax
- Manufacturer: Datamax-O'Neil
- Product Model: E-4206P
- Product Name: E-Class E-4206P Mark III Label Printer
- Product Line: E-Class
Physical Characteristics
- Height: 7.4"
- Width: 8"
- Depth: 11.1"
- Form Factor: Desktop
- Weight (Approximate): 5.29 lb
- Color: Warm Gray
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.40"
- Media Type:
- Continuous Label
- Roll Fed
- Fanfold
- Gap
- Black Bar
- Notch
- Wristband
- Media Thickness: 10 mil
- Media Sensor: Adjustable Media Sensor
- Maximum Roll Diameter: 5"
Fonts & Emulation
- Language Emulation:
- PLZ
- PLI
- PLE
- PLB
Power Description
- Power Source:
- AC Supply
- Battery
Memory
- Standard Memory: 32 MB
- Memory Technology: DRAM
- Flash Memory: 64 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Display & Graphics
- Display Screen Type: LCD
Other
- Platform Supported: PC
Warranty
- Limited Warranty: 1 Year
