15907 Datamax-O'Neil

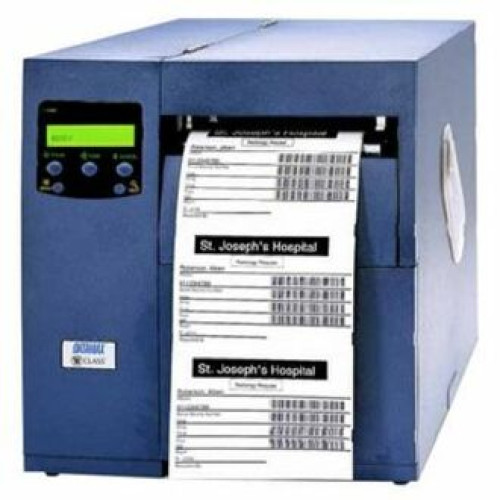

Datamax-O'Neil W-6208 Bar code Printer Part # G62-00-21000Y07

The W-6208 features an all-metal construction designed to withstand adverse work environments. This makes it ideal for heavy-duty applications in the automotive chemical transportation and paper-processing industries. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE EAN-128 and AIAG labels.

G62-00-21000Y07 - Datamax-O'Neil W-6208 Bar code Printer

Part Details: W-6208, Thermal transfer, 203 dpi, 8 ips, 6.61" print width, Ethernet, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Ethernet, Parallel, Serial
Label Core 3 inches
Manufacturer Datamax-O'Neil
Max Label Width 6.70
Max Roll Outer Diameter 8
Maximum Print Width 6.62
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • 16MB addressable DRAM
  • 203 dpi high-resolution Printing
  • 3-Stage Split Ribbon Supply Hub
  • A plethora of field installable electronic and communications upgrades
  • Adjustable Printhead Pressure
  • An AGFA Scalable Font Engine
  • Best warranty in the industry: 5 Years or 4 million inches
  • Easy-to-Read 5-Button 2x20 Character LCD Display
  • Fast 8 ips per second throughput
  • High-Output 32-bit, 90 MHz multi-tasking Processor
  • High-Speed Serial and IEEE 1284-Compliant Parallel Ports
  • Optional Internal Rewinder can rewind a full 8
  • Reinforced Printhead Mechanism
  • Solid metal chassis
  • Sturdy metal covers
  • Wide access to the Printhead for easy cleaning

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 6.62"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: W-6208
  • Product Name: W-6208 Thermal Label Printer
  • Product Line: W-Class

Physical Characteristics

  • Height: 14.8"
  • Width: 13.8"
  • Depth: 18.5"

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Maximum Label Length: 99.99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • CE
    • FCC Class A
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet
