Additional Information
| Interface Options | Parallel, Serial (RS-232) |
|---|---|
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | W-8306 |
| Print Resolution | 305 dpi |
| Print Speed | 6 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |

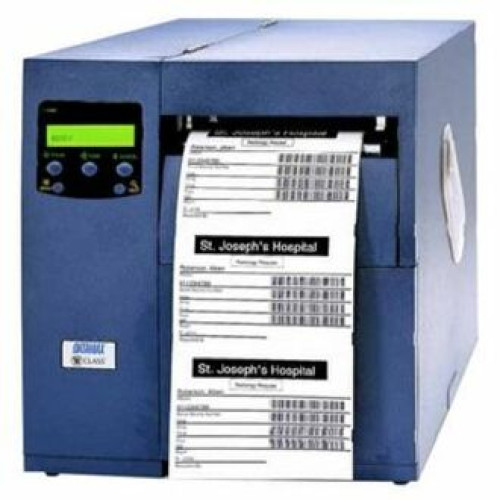

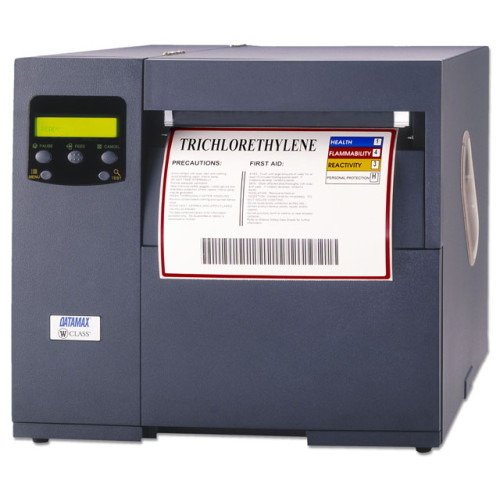

Datamax-O'Neil W-8306 Specs
Technical Information
- Print Method:
- Direct Thermal
- Thermal Transfer (TT)
- Direct Thermal (DT)
- Print Resolution: 300 dpi
- Print Speed: 6 ips
- Interfaces:
- 1 x Serial
- 1 x Parallel
- Maximum Print Width: 8.53"
- Maximum Label Width: 9"
- Media Sensor:
- Reflective
- See Through
- Printer Language: DPL
- Input Voltage: 110 V AC - Auto-switching
- Input Voltage Range: 90 to 132 V AC
- RAM Memory: 16MB
- Flash Memory: 2MB
- Mobile Printer: No
General Information
- Manufacturer:
- Product Name: W-8306 Label Printer
Physical Characteristics
- Dimensions:
- 14.8" (375.92mm) x 16.1" (408.94mm) x 18.5" (470mm)
- 14.8" (375.92mm) x 16.1" (408.94mm) x x 18.5" (470mm)
- Weight: 29.3 kg (64.6 lb)
Included Features
- Included Features: Media Hub
Agency Approvals
- Agency Approvals:
- UL
- Canadian
- European
- CE
- FCC Class A
Media Characteristics
- Maximum Label Roll Diameter: 8"
- Label Core Size: 3"
- Ribbon Core Size: 1"
Environmental Conditions
- Temperature: 32°F (0°C) to 100°F (38°C) Operating
Recommended Accessories for Model: Datamax-O'Neil W-8306 Barcode Label Printer
-
Honeywell H-Class Accessory
Part #: DPO78-2394-01 | SKU: HON28103The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (inches per second). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.MSRP: $777.80 Price: $573.25 -
Honeywell H-Class Accessory
Part #: DPO78-2393-01 | SKU: HON382148 Inch, External Rewinder for W-classMSRP: $1,933.71 Price: $1,402.75 -
Honeywell W-Class Accessory
Part #: 78-2393-01 | SKU: HON24638External HD rewind, 100 Volt, Adjustable torque, 9 1-2 inch label widthMSRP: $1,933.71 Price: $1,402.75 -
Datamax-O'Neil W-Class Accessory
Part #: 13-2246-01 | SKU: DAT438118 inch DR Roller/Ring Kit -
Honeywell W-Class Accessory
Part #: DPR24-2568-03 | SKU: HON140622W-8306 CARD CAGE ASSEMBLY KIT
Recommended Labels for Model: Datamax-O'Neil W-8306 Barcode Label Printer
-
Honeywell Labels Barcode Label
Part #: 420202 | SKU: HON555872.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R). -
Honeywell Labels Barcode Label
Part #: ECL0353-10 | SKU: HON84547.75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case. -
Honeywell Labels Barcode Label
Part #: ECL1253-10 | SKU: HON106511.50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll. -
Honeywell Labels Barcode Label
Part #: ECL1753-10 | SKU: HON1065162.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll. -
Honeywell Labels Barcode Label
Part #: ECL0354-10 | SKU: HON106546.75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
Recommended Printheads for Model: Datamax-O'Neil W-8306 Barcode Label Printer
-
Datamax-O'Neil Printheads Printhead
Part #: 20-2157-01 | SKU: DAT8670W-8306, Replacement Printhead Kit, 300 dpi, Compatible Printer Model W-8306 -
Datamax-O'Neil Printheads Printhead
Part #: DPO20-2157-01 | SKU: DAT28095W-8306, Replacement printhead, 305 dpi. -
Datamax-O'Neil Printheads Printhead
Part #: PHD20-2157-01 | SKU: DAT121285W-8306, Replacement Printhead Kit, 300 dpi, Compatible Printer Model W-8306
Recommended Ribbons for Model: Datamax-O'Neil W-8306 Barcode Label Printer
-
AirTrack® 5095 Performance Resin Ribbon
Part #: 05095BK08345-COMPATIBLE | SKU: AIR1436473.27" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, Rolls per Case: 6, Core Size: 1"Price: $310.00 -
AirTrack® ThermaMAX TMX2200 Ribbon
Part #: 12084106-COMPATIBLE | SKU: AIR1436524.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, Rolls per Case: 24, Core Size: 1" (RI40509WR-Tr)Price: $183.56 -
AirTrack® 5100 Resin Ribbon
Part #: 05100BK11045-COMPATIBLE | SKU: AIR14365305100BK11045 - Compatible, 5100 Premium Resin Ribbon (4.33 in. Width - 110mm, 1,476 feet - 450 Meters with a 1 in. Inner Diameter Core - Single roll. Minimum Purchase of 6 Rolls)Price: $353.23 -
AirTrack® 2100 Wax Ribbon
Part #: 02100BK11045-COMPATIBLE | SKU: AIR1436502100 Wax, 02100BK11045-Compatible Ribbon. Wax Ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters with a 1 in. Inner Diameter Core). 24 rolls/case. Also available as a single roll (Part# 02100BK11045-R-COMPATIBLE).Price: $259.64 -
AirTrack® 5319 Wax Ribbon
Part #: 05319BK11045-COMPATIBLE | SKU: AIR1436444.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1". Available as a single roll (05319BK11045-R-Compatible).MSRP: $336.00 Price: $259.64
Recommended Warranties for Model: Datamax-O'Neil W-8306 Barcode Label Printer
-
Datamax-O'Neil Service Contracts Service Contract
Part #: NSC-DMC-DMX-12 | SKU: DAT17511Service Contract - 1 year, 1 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.
