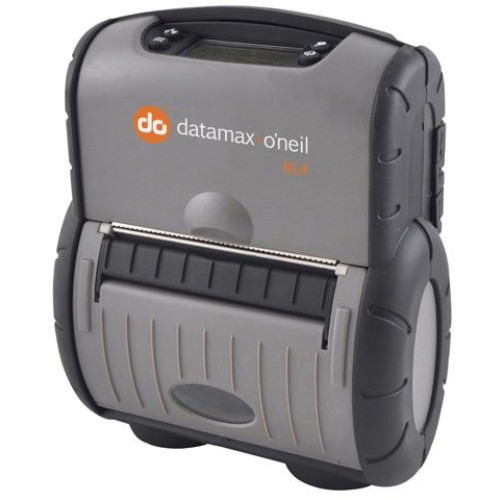

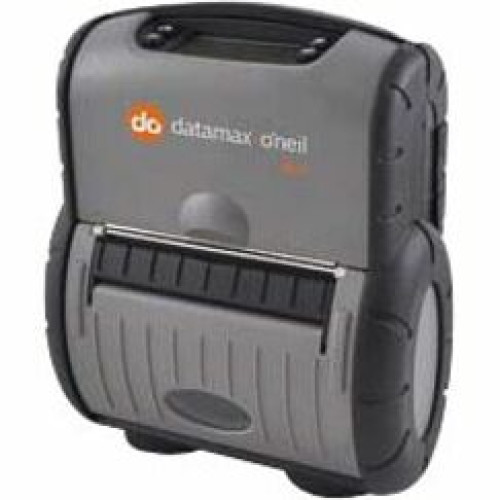

Datamax-O'Neil RL4 Portable Barcode Printer Datamax-O'Neil RL4 Portable Barcode Printer

Datamax-O'Neil RL4 Portable Barcode Printer
Part #: H42000-100 | SKU: DAT101080

The Datamax-O-Neil RL4 eliminates the danger of "label mix up" by printing labels at the point of application. And, since workers aren't wasting time traveling to a central location, warehouse operations are far more efficient and productive. The RL4 comes with popular language emulations that allow you to easily replace existing printers in the workplace. The printer is also compatible with most popular WMS packages and offers optional wireless 802.11 and Bluetooth connectivity. The long lasting lithium-ion battery offers maximum power capacity for a full 8-hour shift, even under the toughest conditions.

Datamax-O'Neil RL4 Portable Barcode Printer

Part Details: RL4, Mobile Direct thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial, USB and 802.11b interfaces. Includes battery and belt loop. Charger and cables not included.
Need a different version of the Datamax-O'Neil RL4 Portable Barcode Printer? View all 9 configurations

Additional Information

Interface Options Serial (RS-232), USB, Wi-Fi
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 2.65
Model Name RL4
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Mobile
Printing Technology Direct Thermal
Datamax-O'Neil RL4 Specs Datamax-O'Neil RL4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.13"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • HIBC
    • Plessey
    • MSI
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • USD-8
    • PDF-417
    • Aztec Code
    • QR Code
    • GS1 DataMatrix
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: RL4
  • Product Name: RL4 Label Printer

Physical Characteristics

  • Height: 7.9"
  • Width: 6.5"
  • Depth: 3.2"
  • Form Factor: Portable
  • Weight (Approximate): 2.16 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • RL4 Label Printer
    • Battery
    • Swivel Belt Clip
    • AC Power Adapter
    • Cigarette Lighter Adapter
    • Cleaning Cards
    • RL4 Label Printer
    • Battery
    • Swivel Belt Clip
    • AC Power Adapter
    • Cigarette Lighter Adapter
    • Cleaning Cards

Media Types & Handling

  • Media Type:
    • Black Mark
    • Fanfold
    • Roll Paper
  • Media Thickness: 6.50 mil
  • Media Sensor: Transmissive Media Sensor
  • Maximum Roll Diameter: 2.65"

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • IPL
    • XML
    • CPCL

Battery Information

  • Number of Batteries Supported: 1
  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Run Time: 16 Hour
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b

Power Description

  • Input Voltage: 14.4 V DC
  • Power Source: Battery

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 64 MB

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
