187279 Datamax-O'Neil

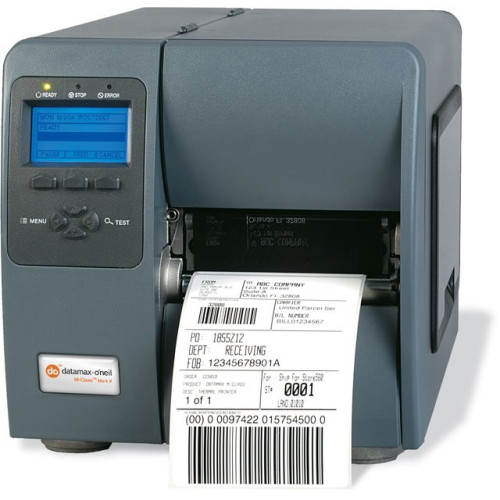

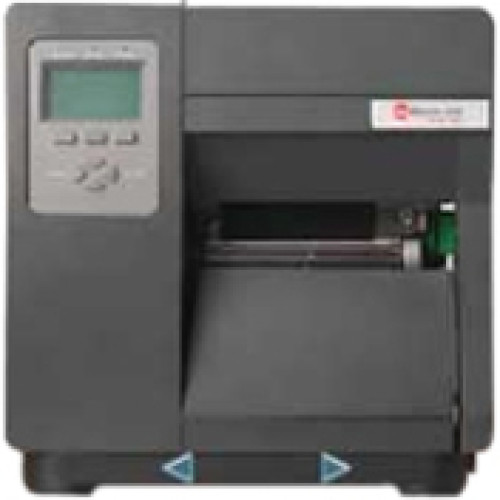

Datamax-O'Neil I-4310e Mark II Bar code Printer Part # I13-00-48400L07

The Datamax-O-Neil I-4310e Mark II offers the fastest processor, largest memory and widest selection of communication ports available in a mid-range printer, the I-4310e Mark II provides lower operating costs and flawless print quality. For applications as diverse as shipping and receiving, product identification, pharmacy labeling and asset tracking, the I-4310e Mark II will maintain its reputation for providing outstanding for performance, reliability and value.

I13-00-48400L07 - Datamax-O'Neil I-4310e Mark II Bar code Printer

Part Details: I-4310e Mark II, 300 DPI TT Internal rewind 10 ips WIRED LAN
InStock
MSRP: $2,507.00 Price: $1,660.63
In Stock - Ships Free

Additional Information

Filter Filter
Included Features Internal Rewind
Interface Options Ethernet, Parallel, Serial, USB
Label Core 1.5 inches, 3 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Maximum Print Width 4.16
Print Method Thermal Transfer
Print Resolution 300 dpi
Print Speed 10
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • OPTIMedia reduces set-up time by enabling the printer to automatically adjust to optimum heat and speed setting to produce the best print quality
  • 4" wide printing at 300 dpi resolution
  • Lower power consumption delivers 25 % lower power consumption in its category
  • Larg selection of connectivity options with serial, parallel, USB, LAN, 2 USB Host ports and SDIO, W-LAN, and GPIO interface card
  • Graphical Display includes a 7-button 128x64 LCD graphical backlit display
  • Rugged construction features a geardriven design and durable die-cast aluminum frame
  • Wide access to the printhead makes it very easy to maintain
  • Field installable options: cutters, peel & present sensors, and thermal transfer option
  • Multi-language menu available in English, Spanish, German, Italian, and French
  • Includes DPL and other popular language emulations that allow the printer to integrate easily into new or existing applications

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Vertical Printing
    • Horizontal Printing
    • Mirror Printing
    • Rewind
  • Barcode Symbology Supported:
    • Code 3 of 5
    • UPC-A
    • UCP-E
    • Industrial 2 of 5
    • Code 11
    • EAN-8
    • HIBC
    • Plessey
    • POSTNET
    • UCC 128
    • EAN 128
    • Planet Code
    • FIM
    • USPS-4 State
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Macro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4310E
  • Product Name: I-Class Mark II I-4310E Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Black Mark
    • Ticket Stock
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-Class Mark II I-4310E Label Printer
    • Software CD
    • I-Class Mark II I-4310E Label Printer
    • Software CD
  • Certifications & Standards:
    • Unicode
    • UTF8

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details

Recommended Accessories

Recommended Labels

  • Datamax Labels Label (420202)

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).
    MSRP: $175.68 Price: $165.61
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL0353-10)

    .75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case.
    MSRP: $57.17 Price: $56.18
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (420066)

    Duratran II, 3" x 3" Thermal transfer paper label. Not perforated. 2,000 labels/roll, 8 roll case.
    Price: $127.98
    In Stock
  • Datamax-O'Neil Labels Label (ECL1253-10)

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll.
    Price: $75.95
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL1453-10)

    Electronic Component Labeling, 1.5" x .25" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    MSRP: $104.64 Price: $98.64
    Ships in 3-5 Days

Recommended Printheads

Recommended Ribbons

  • Datamax-O'Neil SDR-A Resin Ribbon (221917)

    SDR-A Resin, 4.33" x 1182' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 12, Core Size: 1", Available as a single roll (221917-R)
    Price: $528.33
    Ships in 3-5 Days
