Additional Information
| Interface Options | Ethernet, Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | I-4310e |
| Print Resolution | 300 dpi |
| Print Speed | 10 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

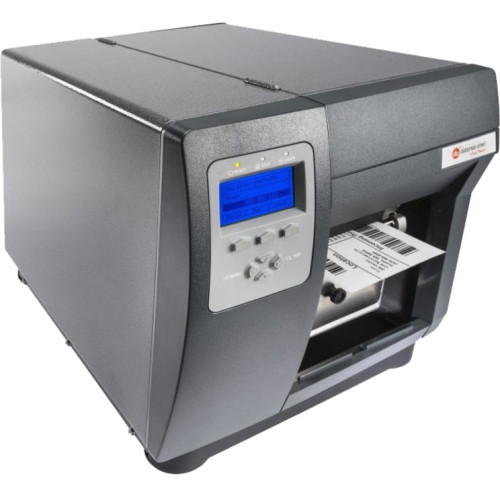

Datamax-O'Neil I-4310e Specs
Technical Information
- Maximum Mono Print Speed: 10 in/s
- Peel Facility: Yes
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.16"
- Recommended Use: Label Print
- Features:
- Vertical Printing
- Horizontal Printing
- Mirror Printing
- Peel Facility
- Rewind
- Barcode Symbology Supported:
- Code 3 of 5
- UPC-A
- UCP-E
- Industrial 2 of 5
- Code 11
- EAN-8
- HIBC
- Plessey
- POSTNET
- UCC 128
- EAN 128
- Planet Code
- FIM
- USPS-4 State
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Codablock
- Code 16K
- Aztec Code
- TLC 39
- Macro PDF-417
- GS1 DataBar
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: I-4310E
- Product Name: I-Class Mark II I-4310E Label Printer
- Product Line: I-Class
Physical Characteristics
- Height: 12.7"
- Width: 12.6"
- Depth: 18.6"
- Form Factor: Desktop
- Weight (Approximate): 45 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Continuous Tag
- Black Mark
- Ticket Stock
- Label
- Media Thickness: 10 mil
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Other
- Platform Supported: PC
- Package Contents:
- I-Class Mark II I-4310E Label Printer
- Software CD
- I-Class Mark II I-4310E Label Printer
- Software CD
- Certifications & Standards:
- Unicode
- UTF8
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Fonts & Emulation
- Language Emulation:
- DPL
- PLI
- PLZ
Memory
- Standard Memory: 32 MB
- Memory Technology: SDRAM
- Flash Memory: 64 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
Display & Graphics
- Display Screen Type: LCD
