| Interface Options | Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 4 |
| Model Name | E-4203 |
| Print Resolution | 203 dpi |
| Printer Type | Desktop |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 0.5 inch |

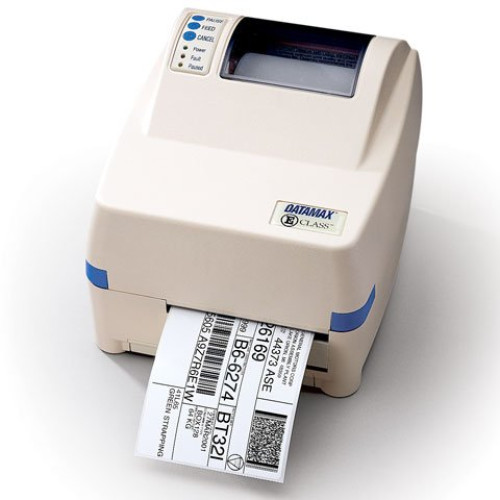

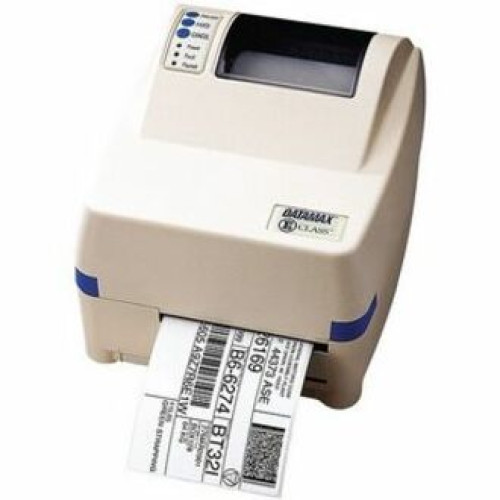

Datamax-O'Neil E-4203 Specs
Technical Information
- Print Method:
- Direct Thermal
- Thermal Transfer (TT)
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 3 ips
- Interfaces: 1 x USB
- Maximum Print Width: 4.1"
- Maximum Label Width: 4.3"
- Maximum Label Length: 24"
- Media Sensor:
- Reflective
- See Through
- Power Supply: External Not Included
- RAM Memory: 2MB
- Flash Memory: 1MB
- Mobile Printer: No
General Information
- Manufacturer:
- Product Name: E-4203 Label Printer
Physical Characteristics
- Dimensions:
- 7.05" (179.07mm) x 8.77" (222.76mm) x 10" (254mm)
- 7.05" (179.07mm) x 8.77" (222.76mm) x x 10" (254mm)
- Weight: 2.4 kg (5.29 lb)
Included Features
- Included Features: Adjustable Media Sensor
Agency Approvals
- Agency Approvals:
- UL
- Canadian
- European
- CE
- FCC Class A
Media Characteristics
- Maximum Label Roll Diameter: 4"
- Label Core Size: 1"
- Ribbon Core Size: 0.5"
Other
- Package Contents:
- E-4203 Label Printer
- US Power Cord
Environmental Conditions
- Temperature: 40°F (4°C) to 95°F (35°C) Operating
Recommended Accessories for Model: Datamax-O'Neil E-4203 Barcode Label Printer
-
Honeywell E-Class Cables, Connectors, and Adapters
Part #: DPO32-2300-01 | SKU: HON22288Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.MSRP: $69.14 Price: $49.77 -
Honeywell E-Class Accessory
Part #: DPR78-2880-01 | SKU: HON155304E-CLASS MARK III TT RIBBON CARRIAGE ACCESSORYMSRP: $455.68 Price: $330.56 -
Honeywell E-Class Accessory
Part #: DPR78-2874-01 | SKU: HON337013Top Cover Assembly, E-Class Mark 3 Basic/AdvancedMSRP: $70.94 Price: $51.45 -
Honeywell H-Class Accessory
Part #: DPO78-2394-01 | SKU: HON28103The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (inches per second). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.MSRP: $777.80 Price: $564.23 -
Honeywell E-Class Accessory
Part #: DPR78-2899-01 | SKU: HON190787BASE ASSEMBLY E-CLASS MARK IIIMSRP: $221.19 Price: $160.45
Recommended Labels for Model: Datamax-O'Neil E-4203 Barcode Label Printer
-
Honeywell Labels Barcode Label
Part #: 451967 | SKU: HON832642" x 1" Thermal transfer polypropylene label. 1125 labels/roll, 16 roll case. -
Honeywell Labels Barcode Label
Part #: 350985 | SKU: HON382284" x 3" Direct thermal paper label. 500 labels/roll, 8 roll case. -
Honeywell Labels Barcode Label
Part #: 450967 | SKU: HON218452" x 1" Thermal transfer paper label. 1,375 labels/roll, 16 roll case. -
Datamax-O'Neil Labels Barcode Label
Part #: 350985-R | SKU: DAT576534" x 3" Direct thermal paper label. 500 labels/roll, single roll. Also available as a case (Part# 350985). -
Datamax-O'Neil Labels Barcode Label
Part #: T100-400600P14 | SKU: DAT1722424" x 6" Thermal transfer paper label. 250 labels/roll, 8 roll case.
Recommended Printheads for Model: Datamax-O'Neil E-4203 Barcode Label Printer
-
Honeywell E-Class Mark III Printhead
Part #: PHD20-2267-01 | SKU: HON84517Replacement Printhead Kit, 203 dpi, Compatible Printer Model E-Class Mark II & IIIMSRP: $226.80 Price: $181.14 -
Honeywell Thermal Printhead
Part #: 20-2192-01 | SKU: HON6465Replacement Printhead Kit, 203 dpi, Compatible Printer Model E-4203 -
Datamax-O'Neil E-4203 Printhead
Part #: DPO20-2192-01 | SKU: DAT22277E-4203, Printhead replacement, 203 dpi.
Recommended Ribbons for Model: Datamax-O'Neil E-4203 Barcode Label Printer
-
AirTrack® 5095 Performance Resin Ribbon
Part #: 05095GS08407-COMPATIBLE | SKU: AIR1436763.31" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 48, Core Size: 0.5". MOQ: 1 Case - Priced per RollPrice: $48.55 -
Honeywell GPR Plus Premium Thermal Transfer Ribbon
Part #: 226455 | SKU: HON223733.5" x 360' Black Wax Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with paper labels. Also available as a single roll (Part# 226455-R). -
Honeywell GPR Plus Premium Thermal Transfer Ribbon
Part #: 226457 | SKU: HON223744.33" x 360' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 24, Core Size: 0.5", Available as a single roll (226457-R) -
Honeywell SDR Resin Ribbon
Part #: 226753 | SKU: HON223762.5" x 360' Black Resin Ribbon. Compatible with Desktop Printers. 48 ribbon case. Used with polyester labels. Also available as a single roll (Part# 226753-R). -
Honeywell SDR Resin Thermal Transfer Ribbon
Part #: 226755 | SKU: HON22377SDR Resin, 3.5" x 360' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels. Also available as a single roll (Part# 226755-R).
Recommended Warranties for Model: Datamax-O'Neil E-4203 Barcode Label Printer
-
Datamax-O'Neil Service Contracts Service Contract
Part #: NSC-DMC-DMX-12 | SKU: DAT17511Service Contract - 1 year, 1 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.
