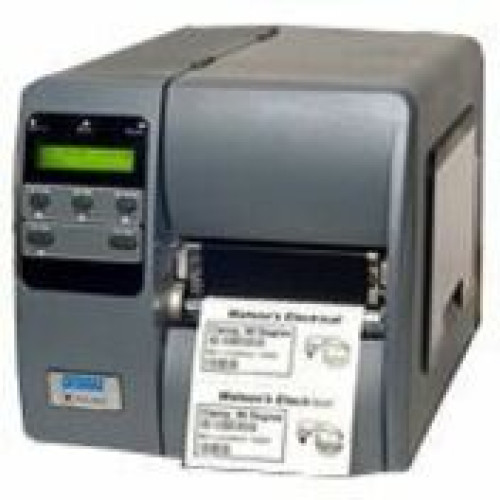

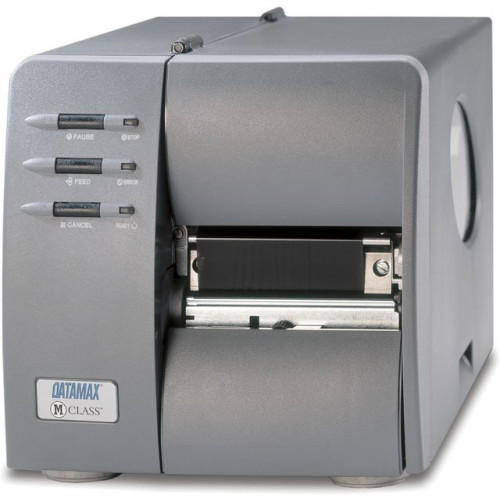

Datamax-O'Neil M-4206 Barcode Label Printer Datamax-O'Neil M-4206 Barcode Label Printer

Datamax-O'Neil M-4206 Barcode Label Printer
Part #: K12-00-16000000 | SKU: DAT28112

The M-4206 is the newest addition to the Class Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.

Datamax-O'Neil M-4206 Barcode Label Printer

Part Details: M-4206, Thermal transfer, 203 dpi, 4.25 inch Print width, 6 ips Print speed, Serial, Parallel and USB Interfaces, 4MB DRAM, 2MB Flash, 220V British and European PlugsBottom of Form
Need a different version of the Datamax-O'Neil M-4206 Barcode Label Printer? View all 37 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name M-4206
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Datamax-O'Neil M-4206 Specs Datamax-O'Neil M-4206 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206
  • Product Name: M-4206 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.3"
  • Width: 9.8"
  • Depth: 18.1"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • M-4206 Label Printer
    • Accessories CD
    • M-4206 Label Printer
    • Accessories CD
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Real Time Clock: On-board real time clock maintains the printers hours of use, inches printed, and time and date.
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/Mirror Image: Any font or graphic field can be printed as a normal or reverse image

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 4 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB
Extended Details
