Additional Information
| Interface Options | Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | M-4208 |
| Print Resolution | 203 dpi |
| Print Speed | 8 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

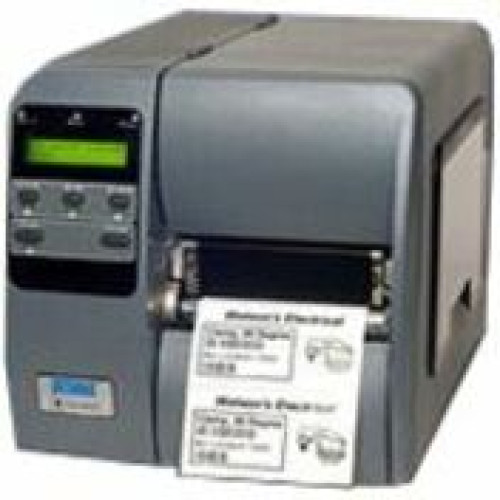

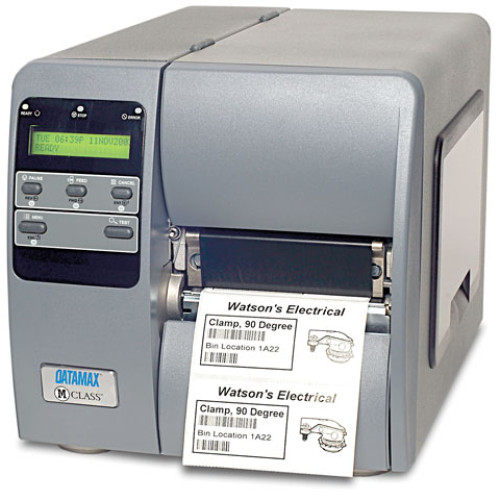

Datamax-O'Neil M-4208 Specs
Technical Information
- Print Method:
- Direct Thermal
- Thermal Transfer (TT)
- Direct Thermal (DT)
- Print Resolution: 203 dpi
- Print Speed: 8 ips
- Interfaces:
- 1 x Serial
- 1 x Parallel
- 1 x USB
- Maximum Print Width: 4.25"
- Maximum Label Width: 4.65"
- Maximum Label Length: 99"
- Media Sensor:
- Reflective
- See Through
- Printer Language: DPL
- Input Voltage: 110 V AC - Auto-switching
- Input Voltage Range: 90 to 132 V AC
- RAM Memory: 8MB
- Flash Memory: 2MB
- Mobile Printer: No
General Information
- Manufacturer:
- Product Name: M-4208 Label Printer
Physical Characteristics
- Dimensions:
- 10.3" (261.62mm) x 9.8" (248.92mm) x 18.06" (459mm)
- 10.3" (261.62mm) x 9.8" (248.92mm) x x 18.06" (459mm)
- Weight: 12.2 kg (26.9 lb)
Included Features
- Included Features:
- Cutter Kit
- Stand TOF Sensor
- 3.25" Tray
Agency Approvals
- Agency Approvals:
- UL
- Canadian
- European
- CE
- FCC Class A
Media Characteristics
- Maximum Label Roll Diameter: 8"
- Label Core Size: 3"
- Ribbon Core Size: 1"
Environmental Conditions
- Temperature: 40°F (4°C) to 95°F (35°C) Operating
