28119 Datamax-O'Neil

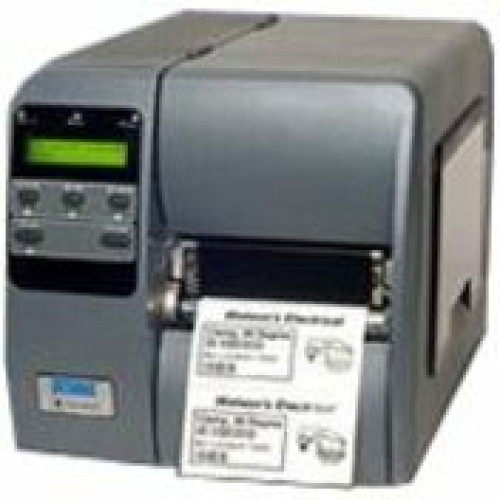

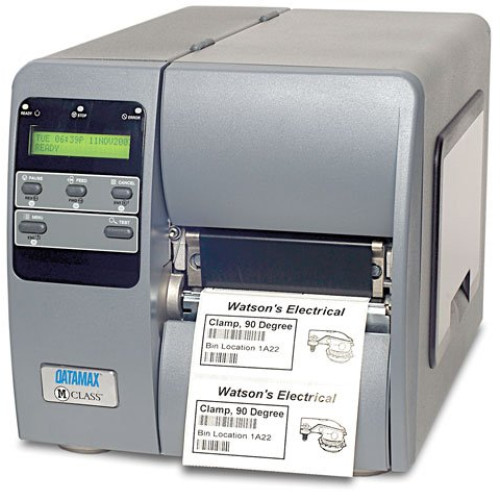

Datamax-O'Neil M-4208 Bar code Printer Part # K22-00-18400001

The M-4208 is designed to address emerging markets for thermal printers, including healthcare, light industrial, retail and shipping applications. With a truly modular design, the M-4208 offer versatility that is unparalleled in the thermal printing industry

K22-00-18400001 - Datamax-O'Neil M-4208 Bar code Printer

Part Details: M-4208, Thermal transfer, 203 dpi, 4 inch Print width, 8 ips Print speed, Serial / Parallel / USB Interface, 8MB DRAM, 2MB Flash, Metal Cover and Internal Rewind
InStock

Additional Information

Filter Filter
Interface Options Parallel, Serial, USB
Label Core 1.5 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.25
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • 203 dpi, a faster processor, an LCD display
  • A seamless replacement printer for customers with aging Datamax "legacy" printers such as the popular Allegro and Prodigy printers.
  • Economic, high performance printing in a smaller footprint
  • Optional MCL capabilities.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.25"
  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions:
    • 10.3" (261.62mm) x 9.8" (248.92mm) x 18.06" (459mm)
    • 10.3" (261.62mm) x 9.8" (248.92mm) x x 18.06" (459mm)
  • Weight: 27 lb (12.25 kg)

Included Features

  • Included Features: Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian Standard
    • European Standard
    • FCC Class A
    • CE Mark

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 40°F (4°C) to 95°F (35°C) Operating
