22336 Datamax-O'Neil

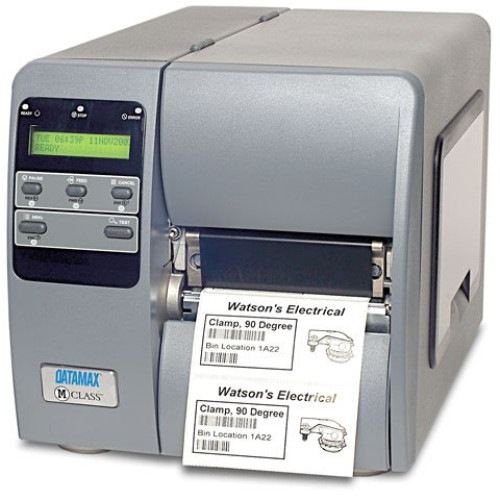

K23-00-18000000 - Datamax-O'Neil M-4306 Bar code Printer

M-4306, Thermal transfer, 300 dpi, 6 ips print speed, 2MB RAM. Includes plastic cover
InStock
Free Shipping

Description

The M-4306 offers users a durable, technologically advanced thermal printer with the design principles that have proven successful in other Datamax-O-Neil printers, in a smaller footprint for use in emerging market applications. The M-4306 is the most feature-rich printer available to address the desktop/light industrial marketplace with the performance and value required in these applications
  • Cantilever printhead mechanism Printhead mechanism is hinged to provide wide-open access.
  • Die-cast aluminum frame - Precision die-cast aluminum frame designed for durability and flexible configuration
  • Flash memory - DPL and printer firmware can be upgraded or enhanced without the need for modifications to the printer or electronics.
  • Front 5 button 2 line, 20 character LCD display - Configure the printer and change how the printer operates.
  • Supplies loading diagram embossed into the frame - Makes loading intuitive.
  • Unique collapsible ribbon hub - Designed for simple loading and unloading of ribbons.

Additional Information

Print Speed 6
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 305 dpi
Maximum Print Width 4.16
Filter Filter
Manufacturer Datamax-O'Neil

Technical Information

  • Maximum Mono Print Speed: 6 in/s 6 lps
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4306
  • Product Name: M-4306 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.3"
  • Width: 9.8"
  • Depth: 18.1"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Ticket Stock
    • Perforated Label
    • Continuous Form
  • Media Size: 4.65" x Roll Paper
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Additional Information:
    • Plastic Cover
    • On-board Real Time Clock
    • Graphics supported .PCX, .BMP and .IMG files
    • 8" outer diameter on a 3.0" core and 7" on a 1.5" core

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: DPL
