Additional Information
| Interface Options | Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | M-4306 |
| Print Resolution | 305 dpi |
| Print Speed | 6 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

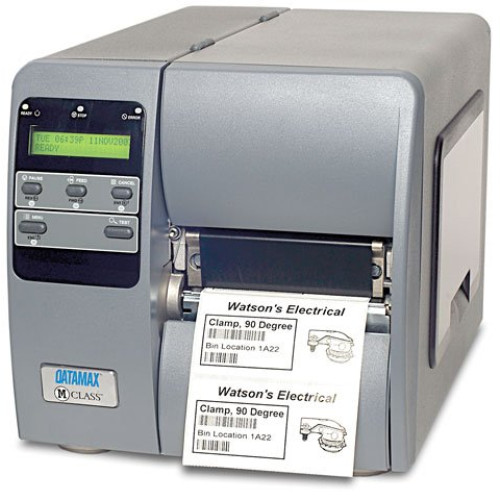

Datamax-O'Neil M-4306 Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 300 dpi
- Maximum Print Width: 4.16"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-13
- EAN-8
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: M-4306
- Product Name: M-4306 Thermal Label Printer
- Product Line: M-Class
Physical Characteristics
- Height: 10.3"
- Width: 9.8"
- Depth: 18.1"
Other
- Platform Supported: PC
- Package Contents:
- M-4306 Label Printer
- Black Power Cord U.S Plug
- Accessories CD
- M-4306 Label Printer
- Black Power Cord U.S Plug
- Accessories CD
- Certifications & Standards:
- Safety Standards:
- UL
- Canadian
- European
- Emission Standards:
- FCC Class A
- CE
- Additional Information:
- On-board Real Time Clock
- Graphics supported .PCX, .BMP and .IMG files
- 8" outer diameter on a 3.0" core and 7" on a 1.5" core
Media Types & Handling
- Maximum Label Width: 4.65"
- Maximum Label Length: 99"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Continuous Tag
- Ticket Stock
- Perforated Label
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Memory
- Standard Memory: 8 MB
- Memory Technology: DRAM
- Flash Memory: 2 MB
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Warranty
- Limited Warranty: 1 Year
