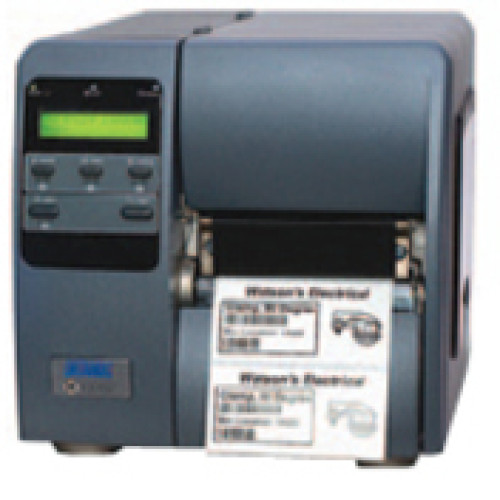

Datamax-O'Neil M-4308 Barcode Label Printer
Part #: KA3-00-08000000 | SKU: DAT146977

The Datamax-O-Neil M-4308 offers users a durable, technologically advanced thermal printer featuring a 300 dpi resolution and an 8 ips printing speed with the design principles that have proven successful in other Datamax-O-Neil printers, in a smaller footprint for use in emerging market applications. The M-4308 is the most feature-rich printer available to address the desktop/light industrial marketplace with the performance and value required in these applications.

Datamax-O'Neil M-4308 Barcode Label Printer

Part Details: Datamax-ONeil M-4308 Mark II Printer, M-4308 8MD FLASH WITH GRAPHIC DISPLAY DIRECT THERMAL

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Print Width 4.75 inch
Max Roll Outer Diameter 8
Model Name M-4308
Print Resolution 300 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Direct Thermal

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4308
  • Product Name: M-4308 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Length: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Continuous Form
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Additional Information:
    • On-board Real Time Clock
    • Graphics supported .PCX, .BMP and .IMG files
    • 8" outer diameter on a 3.0" core and 7" on a 1.5" core

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
