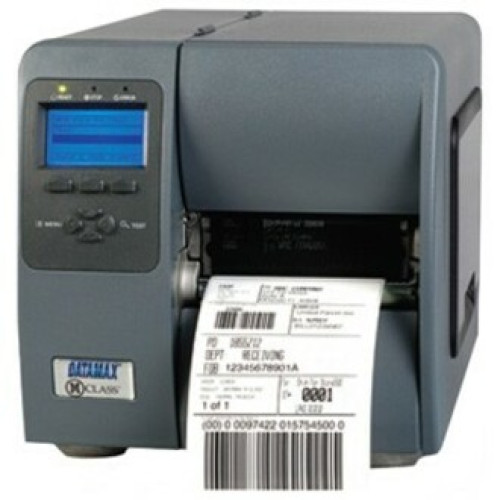

Datamax-O'Neil M-4206 Barcode Label Printer Datamax-O'Neil M-4206 Barcode Label Printer

Datamax-O'Neil M-4206 Barcode Label Printer
Part #: KD2-00-08000007 | SKU: DAT84251

The M-4206 is the newest addition to the Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.

Datamax-O'Neil M-4206 Barcode Label Printer

Part Details: Industrial Printer - Datamax-O-Neil M-4206 - Direct Thermal - 203 dpi - 6ips - Real-time Clock - Parallel/Serial/USB - 8MB Flash - 3" Media Hub - US Power Cord
Need a different version of the Datamax-O'Neil M-4206 Barcode Label Printer? View all 37 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name M-4206
Print Resolution 203 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Direct Thermal
Datamax-O'Neil M-4206 Specs Datamax-O'Neil M-4206 Specs (pdf) Datamax-O'Neil M-4206 Driver Datamax-O'Neil M-4206 Driver (download)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • Micro PDF
    • RSS
    • TLC 39

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206
  • Product Name: M-Class Mark II M-4206 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Other

  • Platform Supported: PC
Extended Details
