83950 Datamax-O'Neil

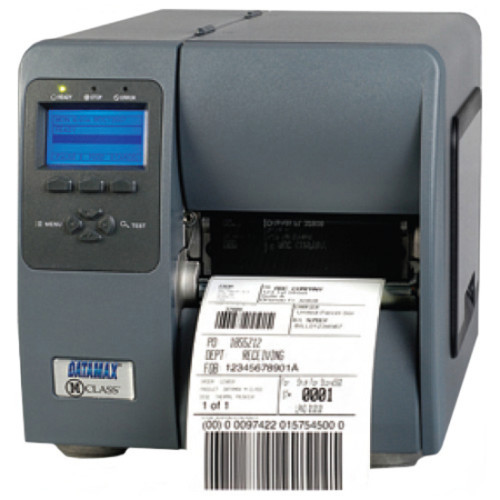

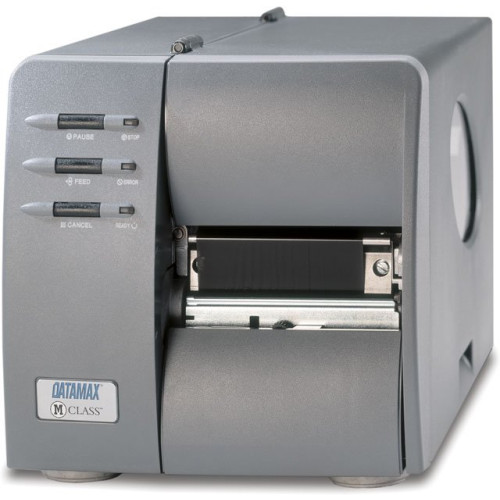

KD2-00-48000000 - Datamax-O'Neil M-4206 Bar code Printer

M-4206, II Thermal transfer, real-time clock (RTC) 203 dpi, 4.25" print width, parallel, serial & USB interfaces, 4MB RAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
InStock
$1,170.00 $781.63
Ships Today
Free Shipping
- +

Description

The M-4206 is the newest addition to the Class Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
  • 6 ips print speed exceeds most throughput requirements for standard bar coding applications.
  • Cantilever printhead assembly makes loading media, cleaning, and changing the printhead and platen roller a breeze.
  • Flash upgradeable firmware for easy configuration and updates.
  • Three configuration methods including a PC-based tool provide flexibility and options for changing items in the printer setup menu.

Additional Information

Print Speed 6
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options USB
Maximum Print Width 4.25
Item Condition New
Filter Filter
Manufacturer Datamax-O'Neil

Recommended Accessories

Recommended Labels

  • Datamax Labels Label (420202)

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).
    $170.40 $160.77
    Ships In 3-5 Days
    - +
  • Datamax-O'Neil Labels Label (ECL0353-10)

    .75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case.
    $55.50 $54.56
    Ships Today
    - +
  • Datamax-O'Neil Labels Label (420066)

    Duratran II, 3" x 3" Thermal transfer paper label. Not perforated. 2,000 labels/roll, 8 roll case.
    $127.98
    Ships Today
    - +
  • Datamax-O'Neil Labels Label (ECL1253-10)

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll.
    $75.95
    Ships In 3-5 Days
    - +
  • Datamax-O'Neil Labels Label (ECL1453-10)

    Electronic Component Labeling, 1.5" x .25" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    $95.77
    Ships In 3-5 Days
    - +

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

Recommended Warranties

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Tear-off
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS
    • Macro PDF

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206
  • Product Name: M-Class Mark II M-4206 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Continuous Label
    • Die-cut Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Other

  • Platform Supported: PC

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: DPL
