| Manufacturer AIDC | Datamax-O'Neil |
|---|---|
| Model Name | ST-3306 |

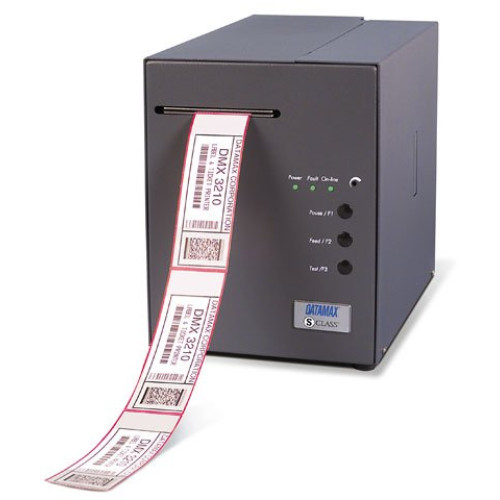

Datamax-O'Neil ST-3306 Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 3.20"
- Recommended Use: Label Print
- Features:
- Real Time Clock
- Mirror Printing
- Rotate Printing
- Cutter
- Barcode Symbology Supported:
- Code 3 of 9
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-13
- EAN-8
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Addendums
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- HIBCC
- EAN/JAN-8
- EAN/JAN-13
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: ST-3306
- Product Name: S-Class ST-3306 Label Printer
- Product Line: S-Class
Physical Characteristics
- Height: 10"
- Width: 8"
- Depth: 14"
- Form Factor: Desktop
- Weight (Approximate): 19 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 3.25"
- Media Type:
- Roll Fed
- Fanfold
- Ticket
- Tag
- Tag Stock
- Media Handling: 1 x Ticket Tray
- Media Thickness: 10 mil
- Media Sensor:
- Adjustable Media Sensor
- Label Taken Sensor
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Platform Supported: PC
- Package Contents:
- S-Class ST-3306 Label Printer
- Software CD
- S-Class ST-3306 Label Printer
- Software CD
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Memory
- Standard Memory: 4 MB
- Memory Technology: DRAM
- Flash Memory: 2 MB
Fonts & Emulation
- Language Emulation:
- DPL
- DTPL
Warranty
- Limited Warranty: 1 Year
Cutter
- Cutting Method: Automatic
