Additional Information
| Interface Options | USB |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | I-4212 |
| Print Resolution | 203 dpi |
| Print Speed | 12 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

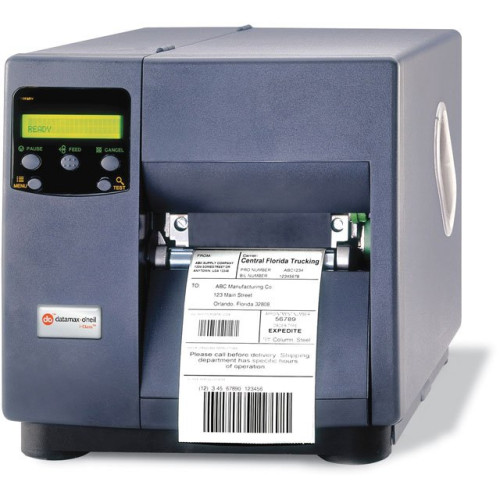

Datamax-O'Neil I-4212 Specs
Technical Information
- Maximum Mono Print Speed: 12 in/s
- Maximum Print Resolution: 203 dpi
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: I-4212
- Product Name: I-4212 Thermal Label Printer
- Product Line: I-Class
Physical Characteristics
- Height: 12.7"
- Width: 12.6"
- Depth: 18.6"
Interfaces/Ports
- USB: Yes
Other
- Platform Supported: PC
- Certifications & Standards:
- Safety Standards:
- UL
- Canadian
- European
- Emissions Standards
- FCC Class A
- CE Mark
- Additional Information:
- Graphics Supported: PCX, BMP and IMG files
- Font Expansion: All fonts expandable vertically and horizontally up to 24x
- Cabinet: Metal construction, clear side window to easily monitor media supply levels
- Font Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Label
- Continuous Tag
- Ticket Stock
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Memory
- Standard Memory: 16 MB
- Memory Technology: DRAM
- Flash Memory: 2 MB
Power Description
- Input Voltage: 110 V AC
Recommended Accessories for Model: Datamax-O'Neil I-4212 Barcode Label Printer
-
Honeywell I-Class Printer Accessory
Part #: DPR51-2283-00 | SKU: HON191176CUTTER BOARD I CLASS, I-CLASS MARK IIMSRP: $217.28 Price: $157.62 -
Honeywell I-Class Printer Accessory
Part #: DPR78-2902-01 | SKU: HON270661Kit, Display Board and Bezel I-Class Mark IIMSRP: $299.96 Price: $239.58 -
Honeywell I-Class Printer Accessory
Part #: DPO16-2627-01 | SKU: HON43843Adapter (3 Inch Media Hub)MSRP: $50.38 Price: $38.59 -
Honeywell I-Class Printer Accessory
Part #: OPT78-2444-01 | SKU: HON131892Peel-and-Present mechanism, for I-Class series printers, Requires rewindMSRP: $444.48 Price: $327.58 -
Honeywell I-Class Printer Accessory
Part #: 15-2761-04 | SKU: HON24624Platen roller assembly for I-Class printersMSRP: $114.46 Price: $83.03
Recommended Labels for Model: Datamax-O'Neil I-4212 Barcode Label Printer
-
Honeywell Labels Barcode Label
Part #: 420202 | SKU: HON555872.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R). -
Honeywell Labels Barcode Label
Part #: ECL0353-10 | SKU: HON84547.75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case. -
Honeywell Labels Barcode Label
Part #: ECL1253-10 | SKU: HON106511.50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll. -
Honeywell Labels Barcode Label
Part #: ECL1753-10 | SKU: HON1065162.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll. -
Honeywell Labels Barcode Label
Part #: ECL0354-10 | SKU: HON106546.75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
Recommended Printheads for Model: Datamax-O'Neil I-4212 Barcode Label Printer
-
Honeywell Printheads Printhead
Part #: PHD20-2181-01 | SKU: HON70941Replacement printhead kit, 203 dpi. Compatible with Datamax O'Neil I-Class. -
Datamax-O'Neil Printheads Printhead
Part #: DPO20-2181-01 | SKU: DAT22275I-Class, Replacement printhead, 203 dpi (post-2002 printers).
Recommended Ribbons for Model: Datamax-O'Neil I-4212 Barcode Label Printer
-
AirTrack® 5095 Performance Resin Ribbon
Part #: 05095BK08345-COMPATIBLE | SKU: AIR1436473.27" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, Rolls per Case: 6, Core Size: 1"Price: $310.00 -
AirTrack® ThermaMAX TMX2200 Ribbon
Part #: 12084106-COMPATIBLE | SKU: AIR1436524.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, Rolls per Case: 24, Core Size: 1" (RI40509WR-Tr)Price: $183.56 -
AirTrack® 5100 Resin Ribbon
Part #: 05100BK11045-COMPATIBLE | SKU: AIR14365305100BK11045 - Compatible, 5100 Premium Resin Ribbon (4.33 in. Width - 110mm, 1,476 feet - 450 Meters with a 1 in. Inner Diameter Core - Single roll. Minimum Purchase of 6 Rolls)Price: $353.23 -
AirTrack® 2100 Wax Ribbon
Part #: 02100BK11045-COMPATIBLE | SKU: AIR1436502100 Wax, 02100BK11045-Compatible Ribbon. Wax Ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters with a 1 in. Inner Diameter Core). 24 rolls/case. Also available as a single roll (Part# 02100BK11045-R-COMPATIBLE).Price: $259.64 -
AirTrack® 5319 Wax Ribbon
Part #: 05319BK11045-COMPATIBLE | SKU: AIR1436444.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1". Available as a single roll (05319BK11045-R-Compatible).MSRP: $336.00 Price: $259.64
Recommended Warranties for Model: Datamax-O'Neil I-4212 Barcode Label Printer
-
Honeywell Service Contracts Service Contract
Part #: R22-WS-W3P0E0C3 | SKU: HON185143Extended Comprehensive Warranty for I-4212MSRP: $465.00 Price: $370.69 -
Honeywell Service Contracts Service Contract
Part #: R22-WS-W5P0E0C5 | SKU: HON185144Extended Comprehensive Warranty for I-4212MSRP: $863.00 Price: $687.96 -
Datamax-O'Neil Service Contracts Service Contract
Part #: NSC-DMC-DMX-12 | SKU: DAT17511Service Contract - 1 year, 1 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.
