24660 Datamax-O'Neil

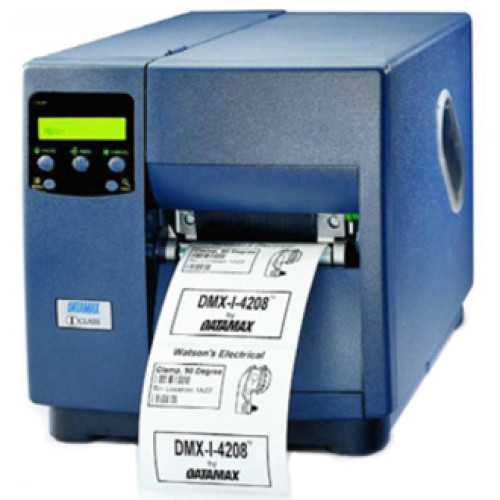

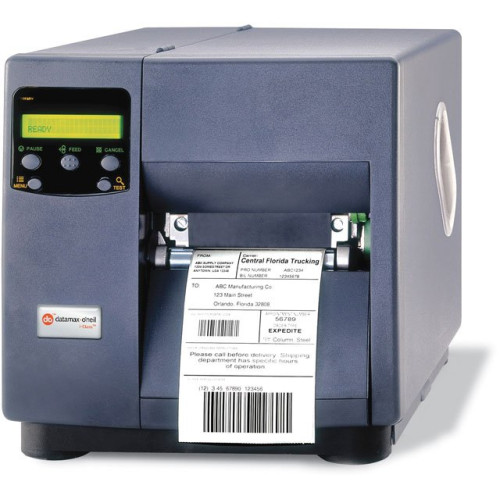

Datamax-O'Neil I-4212 Bar code Printer Part # R22-00-18400Y07

The I-4212 is the fastest printer in the Datamax-O-Neil I-Class series. The I-4212 is an excellent choice where high volumes of labels are required quickly either on demand or in batches. It is ideal for printing labels for industrial commercial business and clinical labeling applications.

R22-00-18400Y07 - Datamax-O'Neil I-4212 Bar code Printer

Part Details: I-4212, Thermal transfer, 203 dpi, 4 inch print width, 12 ips print speed, Serial, Parallel and Ethernet interfaces, Rewind
InStock

Additional Information

Filter Filter
Interface Options Ethernet, Parallel, Serial
Label Core 1.5 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.10
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 12
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • A unique collapsible Ribbon hub that makes loading and unloading a snap
  • Barcode Modulus: 5 mil to 110 mil
  • Barcodes: Code 39, Interleaved 2 of 5, Code 128 (subsets A, B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC 2and5 digit addendums, EAN-8, EAN-13, EAN 2and5 digit addendums, UPC random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, UCC/EAN Code 128, Postnet, Code 128 MOD 43, PDF417, UPS MaxiCode (mode 2 and 3), DataMatrix, Telepen
  • Cabinet: Metal construction
  • Character Set Modified IBM Code Page 850, includes characters for English and most European, Scandinavian and Spanish speaking countries
  • Color-Coded Operator Cues
  • Easily accessible Printhead mechanism
  • Easy to Maintain - Change the Printhead and the Platen Roller in less than 5 minutes
  • Easy to upgrade and reconfigure for business growth
  • Easy-to-Read front LCD Display
  • Embossed media loading diagrams
  • Font Expansion and Rotation: All Fonts are expandable vertically and horizontally up to 24x - Fonts and Graphics can be printed in four directions: 0-, 90-, 180- and 270-
  • Graphics Support: .PCX,. BMP and .IMG files
  • Interfaces: Centronics Parallel Port (IEEE 1284 compliant), RS-232 at 2,400 to 38,400 BPS, optional Ethernet
  • Label Backfeed: For use with optional Cutter
  • Media Sensing: Adjustable Sensor detects
  • Media Type: Roll-fed or fan-fold materials, die-cut or continuous labels, perforated or continuous tag/ticket stock
  • Media Window: Clear side door panel to easily monitor media supply levels
  • Memory: 2MB Downloadable Flash Program Memory 16MB DRAM Memory
  • Optional Ethernet and Twinax/Coax support allows the Printer to connect to virtually any host system environment.
  • Power Source: Auto-sensing 115, 230 VAC 50/60 Hz, specify appropriate Power cord when ordering
  • Powerful 32-bit multi-tasking Processor and an industry leading 16MB of addressable RAM
  • Reverse Fields/Mirror Image: Any Font or Graphic Field can be printed as a normal or reverse image
  • Standard Bi-Directional Parallel and High-Speed Serial Interfaces allow easy integration into your system.
  • Windows Driver: Used for creating label formats using virtually any Windows-based program. Included on Datamax-O-Neil Accessories CD, or via our web site.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4212
  • Product Name: I-4212 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Size: 4.65" x Roll Paper
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 3 Year
