6101 Datamax-O'Neil

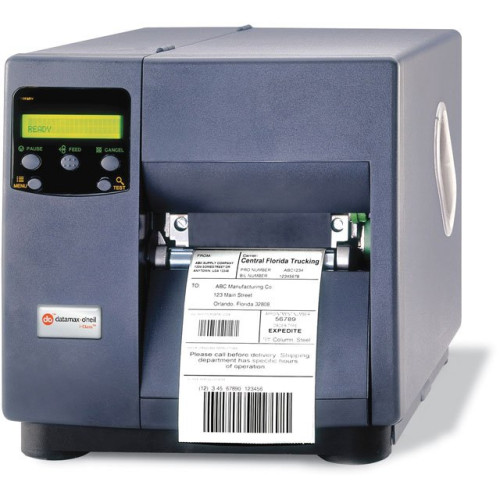

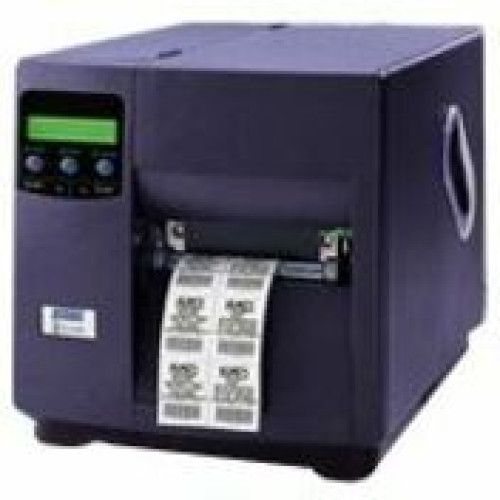

Datamax-O'Neil I-4308 Bar code Printer Part # R23-00-18000007

The I-4308 is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses or adding an intricate Datamatrix or PDF-417 bar code label to a package.

R23-00-18000007 - Datamax-O'Neil I-4308 Bar code Printer

Part Details: I-4308, Thermal transfer, 305 dpi, 8 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Parallel, Serial
Label Core 1.5 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Print Method Thermal Transfer
Print Resolution 305 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1
  • A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM
  • A unique collapsible ribbon hub that makes loading and unloading a snap
  • An easy-to-read front LCD display
  • Color coded operator cues
  • Easily accessible printhead mechanism
  • Easy to upgrade and reconfigure for business growth
  • Embossed media loading diagrams
  • Extremely easy to maintain/change the printhead and the platen roller in less than 5 minutes
  • Modular design facilities adding and/or changing options
  • Optional Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment
  • Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standards:
    • FCC Class A
    • CE Mark
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB
Extended Details

Recommended Accessories

Recommended Labels

  • Datamax Labels Label (420202)

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).
    MSRP: $175.68 Price: $165.61
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL0353-10)

    .75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case.
    MSRP: $57.17 Price: $56.18
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (420066)

    Duratran II, 3" x 3" Thermal transfer paper label. Not perforated. 2,000 labels/roll, 8 roll case.
    Price: $127.98
    In Stock
  • Datamax-O'Neil Labels Label (ECL1253-10)

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll.
    Price: $75.95
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL1453-10)

    Electronic Component Labeling, 1.5" x .25" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    MSRP: $104.64 Price: $98.64
    Ships in 3-5 Days

Recommended Printheads

Recommended Ribbons

  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (222904)

    PGR Plus Premium Wax-Resin, 4" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.
    Call For Price
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295909)

    PGR Plus Premium Wax-Resin, 4.25" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295909-R)
    Price: $940.15
    In Stock
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295906)

    PGR Plus Premium Wax-Resin, 4" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295906-R)
    Price: $884.52
    Ships in 3-5 Days
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295907)

    PGR Plus Premium Wax-Resin, 4.5" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polypropylene labels. Also available as a roll (Part# 295907-R).
    Price: $994.83
    Ships in 3-5 Days
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295904)

    PGR Plus Premium Wax-Resin, 3" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, Rolls per Case: 24, Core Size: 1".
    Price: $994.37
    Ships in 3-5 Days
