6102 Datamax-O'Neil

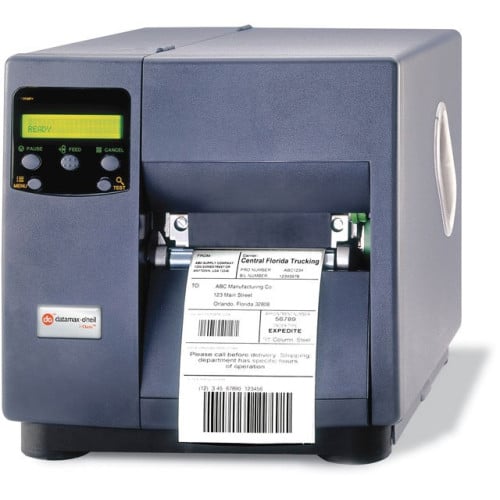

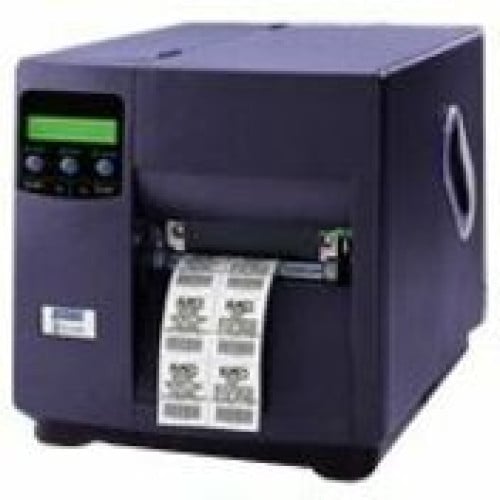

Datamax-O'Neil I-4308 Bar code Printer Part # R23-00-18400007

The I-4308 is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses or adding an intricate Datamatrix or PDF-417 bar code label to a package.

R23-00-18400007 - Datamax-O'Neil I-4308 Bar code Printer

Part Details: I-4308, Thermal transfer, 305 dpi, 8 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes rewinder & US power cord. Order cables separately. See accessories.
InStock

Additional Information

Filter Filter
Interface Options Parallel, Serial
Label Core 1.5 inches
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Print Method Thermal Transfer
Print Resolution 305 dpi
Print Speed 8
Printer Mobility Not Mobile
Printer Type Industrial
Product Condition New
Ribbon Core 1

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.16"
  • Maximum Label Width: 4.65"
  • Media Sensor:
    • See Through
    • Reflective
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions:
    • 12.70" (322.58mm) x 12.62" (320.55mm) x 18.60" (472mm)
    • 12.70" (322.58mm) x 12.62" (320.55mm) x x 18.60" (472mm)
  • Weight: 45 lb (20.41 kg)

Included Features

  • Included Features: Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • FCC Class A
    • CE Mark

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating
Extended Details

Recommended Accessories

Recommended Labels

  • Datamax Labels Label (420202)

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).
    MSRP: $175.68 Price: $165.61
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL0353-10)

    .75" x .25" Thermal transfer synthetic electronics component label. 10000 labels/case.
    MSRP: $57.17 Price: $56.18
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (420066)

    Duratran II, 3" x 3" Thermal transfer paper label. Not perforated. 2,000 labels/roll, 8 roll case.
    Price: $127.98
    In Stock
  • Datamax-O'Neil Labels Label (ECL1253-10)

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll.
    Price: $75.95
    Ships in 3-5 Days
  • Datamax-O'Neil Labels Label (ECL1453-10)

    Electronic Component Labeling, 1.5" x .25" Thermal transfer synthetic electronics component label. 2 across. 10000 labels/roll, single roll.
    MSRP: $104.64 Price: $98.64
    Ships in 3-5 Days

Recommended Printheads

Recommended Ribbons

  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (222904)

    PGR Plus Premium Wax-Resin, 4" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.
    Call For Price
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295909)

    PGR Plus Premium Wax-Resin, 4.25" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295909-R)
    Price: $940.15
    In Stock
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295906)

    PGR Plus Premium Wax-Resin, 4" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1", Available as a single roll (295906-R)
    Price: $884.52
    Ships in 3-5 Days
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295907)

    PGR Plus Premium Wax-Resin, 4.5" x 1182' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polypropylene labels. Also available as a roll (Part# 295907-R).
    Price: $994.83
    Ships in 3-5 Days
  • Datamax-O'Neil PGR Plus Premium Wax/Resin Ribbon (295904)

    PGR Plus Premium Wax-Resin, 3" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1".
    Price: $994.37
    Ships in 3-5 Days
