31547 Datamax-O'Neil

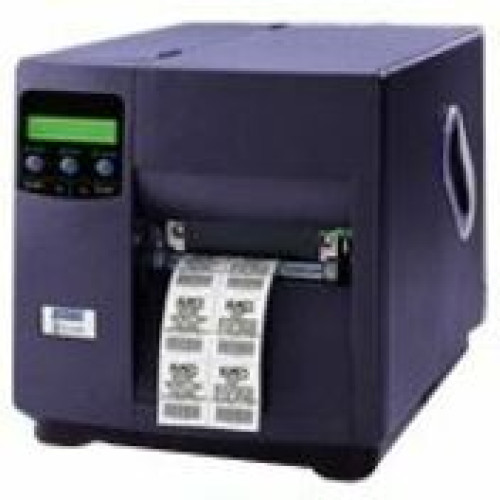

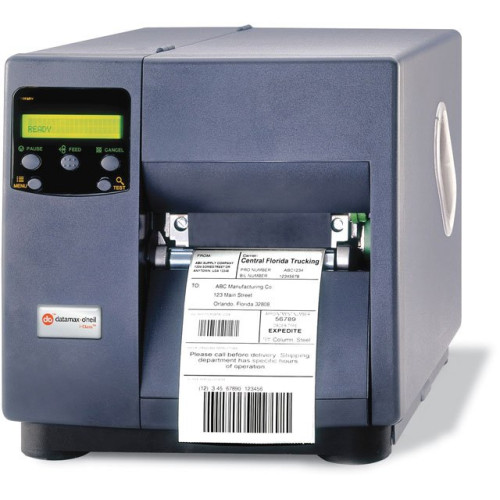

R23-00-18900007 - Datamax-O'Neil I-4308 Bar code Printer

I-4308, I4308, Thermal transfer, 300 DPI, 4", PEEL/PRES/REW, 8 ips, US POWER
InStock
Free Shipping

Description

The I-4308 is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses or adding an intricate Datamatrix or PDF-417 bar code label to a package.
  • A powerful 32-bit multi-tasking processor and an industry leading 16MB of addressable RAM
  • A unique collapsible ribbon hub that makes loading and unloading a snap
  • An easy-to-read front LCD display
  • Color coded operator cues
  • Easily accessible printhead mechanism
  • Easy to upgrade and reconfigure for business growth
  • Embossed media loading diagrams
  • Extremely easy to maintain/change the printhead and the platen roller in less than 5 minutes
  • Modular design facilities adding and/or changing options
  • Optional Ethernet and Twinax/Coax support allows the printer to connect to virtually any host system environment
  • Standard bi-directional parallel and high-speed serial interfaces allow easy integration into your system

Additional Information

Print Speed 8
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 305 dpi
Maximum Print Width 4.16
Filter Filter
Manufacturer Datamax-O'Neil

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Rewinder
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL, Canadian, and European safety standards
    • FCC Class A emissions standard
    • CE Mark
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB
