212 Datamax-O'Neil

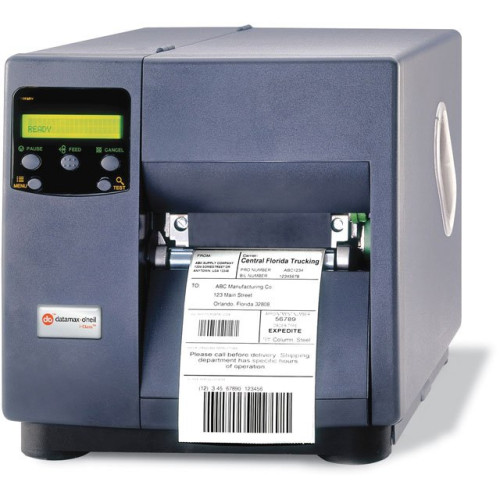

R46-00-18000007 - Datamax-O'Neil I-4604 Bar code Printer

I-4604, Thermal transfer, 600 dpi, 6 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash, Coated side in. Includes US power cord. Order cables separately. See accessories.
InStock
Free Shipping

Description

The I-4604 printer from Datamax-O-Neil is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. With a 600 dpi (24 dots-mm) and the ability to accurately maintain print registration the I-4604 produces small labels for applications such as tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses cosmetic labels or adding an intricate Datamatrix Aztec or PDF-417 bar code label to a package. When it comes to reliability ease of use maintenance and high performance there is just one choice : the I-4604. It's the industry's answer to your high performance high-resolution printing needs.
  • Color coded component cues -- Easy to demonstrate printer operations. Reduces training time. More intuitive. Novice users are less fearful of printer operations.
  • Die-cast aluminum frame -- Durable, light weight design stands up to more punishment. Precision manufacturing equates to less ribbon wrinkle out of the box.
  • Field installable options -- Memory options, cutter, and sensor simply plug into the front of the printer.
  • Flash memory -- Easier to remain current. Updates can be made to the printer without the need for replacing EPROMS.
  • Front 5 button 2 line, 20 character LCD display -- All configurations take place via the front menu. No complicated dipswitches.
  • Serial and parallel communications -- Industry standard RS-232C and Centronics Parallel ports included for host communication.
  • Warranty -- 3 Year or 3 million linear inches warranty on mechanics and electronics.
  • Windows printer driver -- End-users can choose which application software to use with the I-CLASS.

Additional Information

Print Speed 4
Printer Type Industrial
Print Method Thermal Transfer
Print Resolution 609 dpi
Interface Options Serial
Maximum Print Width 4.16
Filter Filter
Manufacturer Datamax-O'Neil

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4604
  • Product Name: I-4604 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Plain Paper
    • Tag Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Fonts & Emulation

  • Language Emulation: DPL
