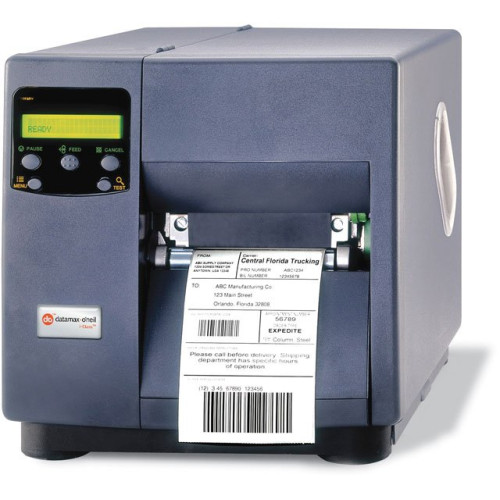

Datamax-O'Neil I-4604 Barcode Label Printer
Part #: R46-00-18000Y07 | SKU: DAT15917

The I-4604 printer from Datamax-O-Neil is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional barcodes. With a 600 dpi (24 dots-mm) and the ability to accurately maintain print registration the I-4604 produces small labels for applications such as tracking small parts with high resolution barcode labels printing high quality graphics for identifying wiring harnesses cosmetic labels or adding an intricate Datamatrix Aztec or PDF-417 barcode label to a package. When it comes to reliability ease of use maintenance and high performance there is just one choice : the I-4604. It's the industry's answer to your high performance high-resolution printing needs.

Datamax-O'Neil I-4604 Barcode Label Printer

Part Details: I-4604, Thermal transfer, 600 dpi, 4 ips, 4.16" print width, Ethernet, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232)
Manufacturer Datamax-O'Neil
Max Label Width 4.65
Max Roll Outer Diameter 8
Model Name I-4604
Print Resolution 609 dpi
Print Speed 4 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4604
  • Product Name: I-4604 Network Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Paper
    • Continuous Form
    • Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Additional Information:
    • Graphics Supported : .PCX, .BMP and .IMG files
    • Reverse Fields / Mirror Image : Any font or graphic field can be printed as a normal or reverse image

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet
