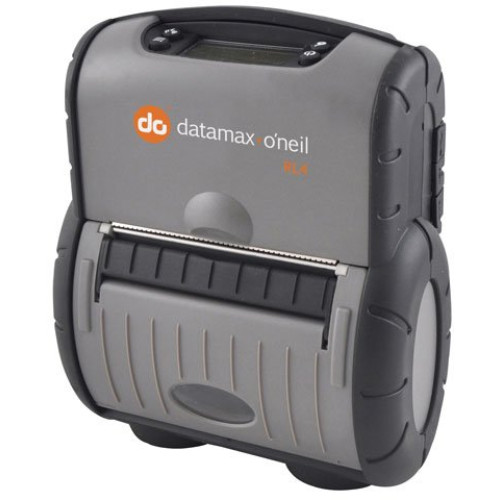

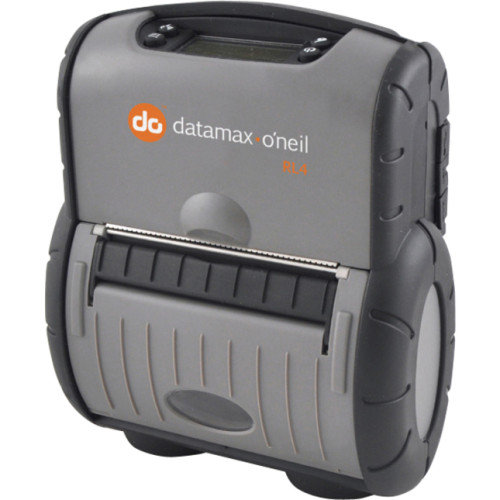

Datamax-O'Neil RL4 Portable Barcode Printer Datamax-O'Neil RL4 Portable Barcode Printer

Datamax-O'Neil RL4 Portable Barcode Printer
Part #: RL4-DP-00000010 | SKU: DAT224147

The Datamax-O-Neil RL4 eliminates the danger of "label mix up" by printing labels at the point of application. And, since workers aren't wasting time traveling to a central location, warehouse operations are far more efficient and productive. The RL4 comes with popular language emulations that allow you to easily replace existing printers in the workplace. The printer is also compatible with most popular WMS packages and offers optional wireless 802.11 and Bluetooth connectivity. The long lasting lithium-ion battery offers maximum power capacity for a full 8-hour shift, even under the toughest conditions.

Datamax-O'Neil RL4 Portable Barcode Printer

Part Details: RL4, Mobile Direct thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial and USB interfaces. Includes battery and belt loop. Charger and cables not included.
Need a different version of the Datamax-O'Neil RL4 Portable Barcode Printer? View all 9 configurations

Additional Information

Interface Options Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Roll Outer Diameter 2.65
Model Name RL4
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Mobile
Printing Technology Direct Thermal
Datamax-O'Neil RL4 Specs Datamax-O'Neil RL4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.13"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 3 of 9
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • HIBC
    • Plessey
    • MSI
    • UCC 128
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • USD-8
    • Codabar
    • PDF-417
    • Aztec Code
    • QR Code
    • GS1 DataMatrix
    • TLC 39
    • Micro PDF

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: RL4
  • Product Name: RL4 Label Printer

Physical Characteristics

  • Height: 7.9"
  • Width: 6.5"
  • Depth: 3.2"
  • Form Factor: Portable
  • Weight (Approximate): 2.16 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Label
    • Shipping Label
    • Linered Label
    • Black Mark
    • Gap
    • Fanfold
    • Roll Paper
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Label Taken Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 2.65"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • ZPL II
    • CPCL
    • IPL
    • XML

Battery Information

  • Battery Run Time: 16 Hour
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 64 MB
  • Flash Memory: 16 MB

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: Battery
Extended Details
