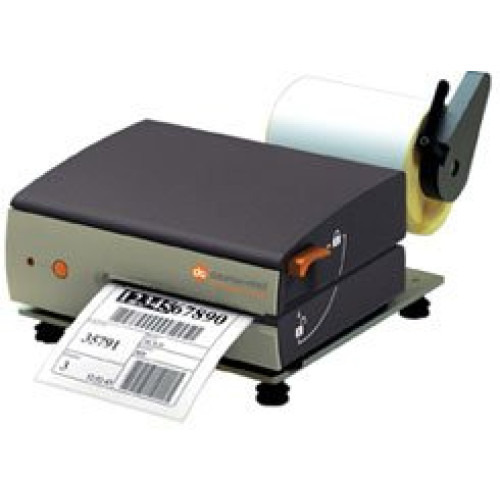

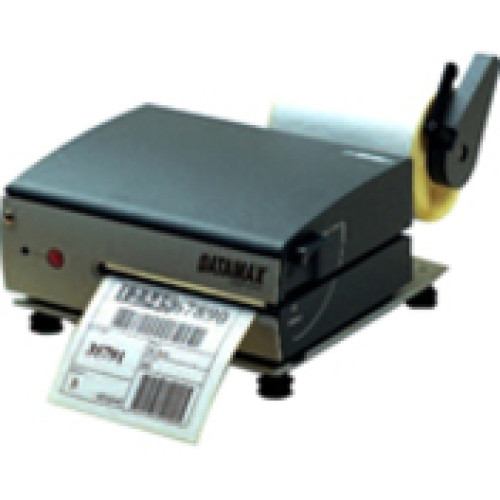

Datamax-O'Neil MP Compact4 Mobile Mark II Barcode Label Printer
Part #: XD1-00-07000000 | SKU: 101126

The Datamax-O-Neil MP Compact4 Mobile Mark II printer features a small footprint, industrial grade ruggedness, and high mobility which make it the perfect printer for lift truck and mobile cart printing solutions. The MP Compact4 Mobile Mark II is constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the MP Compact4 Mobile Mark II industrial printers are built to withstand the rigors of a warehouse or high volume printing application. Loading paper is easy too: The levers are large and easy to manage - so easy that the operation can be done single handed while wearing a leather or latex glove. The paper path is slotted through the side of the printer with no covers to open or clamshells to unlock. A variety of interface options is available.

Datamax-O'Neil MP Compact4 Mobile Mark II Barcode Label Printer

Part Details: MP Compact4 Mobile Mark II, Mobile Printer, Direct thermal, Serial/Parallel/USB, Real-time clock, 4MB Flash/8MB DRAM, 200 dpi, 5"/sec print speed

Additional Information

Included Features No
Interface Options No
Label Core Size 1.5 inches
Manufacturer No
Max Label Width No
Max Roll Outer Diameter No
Model Name MP Compact4 Mobile Mark II
Print Resolution No
Print Speed No
Printer Type No
Printing Technology No

Technical Information

  • Maximum Mono Print Speed: 4.90 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • QR Code
    • PDF-417
    • Data Matrix
    • Maxi Code
    • EAN-13

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: MP
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: Compact4 Mark II
  • Product Name: Compact4 Mark II Mobile Label Printer

Physical Characteristics

  • Height: 4.9"
  • Width: 9.1"
  • Depth: 10.2"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Ticket
    • Tag
  • Media Thickness: 7.10 mil
  • Label Core Size: 1.57"
  • Maximum Roll Diameter: 3.90"

Memory

  • Standard Memory: 2 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Other

  • Platform Supported: PC
