Digi EtherLite Data Networking
Part #: 70001427 | SKU: DIG43895

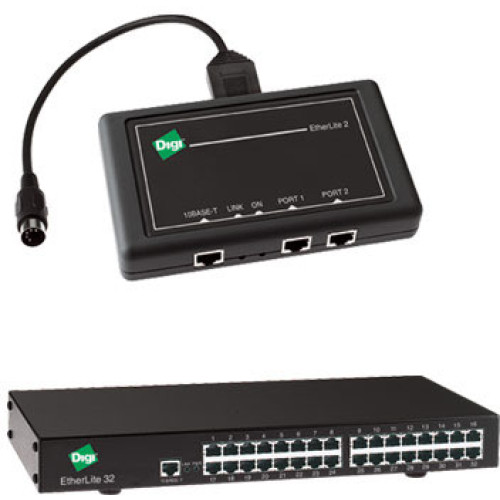

EtherLite from Digi offers a cost-effective network serial concentrator for retail/POS, process control, data collection and other applications requiring serial port connectivity over an Ethernet network. It multiplexes all serial ports into a single TCP/IP session, minimizing Ethernet traffic. It is available in 2, 8, 16 or 32 port versions with port speeds up to 115 Kbps. Device drivers are available for UNIX, Linux and Windows platforms.

Digi EtherLite Data Networking

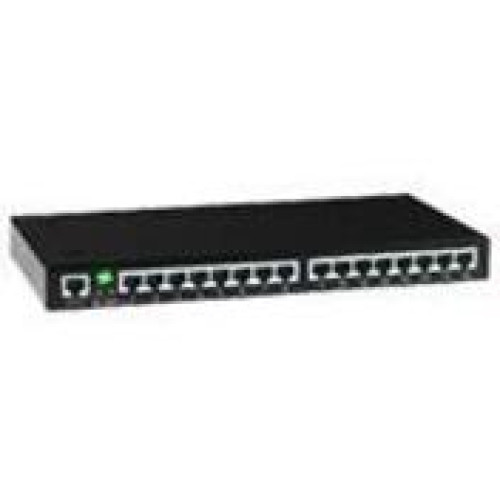

Part Details: EtherLite, Lite 160 Terminal Server (16-Port, RS-232 RJ45 Terminal Server)

Need a different version of the Digi EtherLite Data Networking? View all 3 configurations

Additional Information

Manufacturer AIDC	Digi
Model Name	EtherLite

Digi EtherLite Specs (pdf)

General Information

Product Type: Terminal Server
Brand Name: Digi
Manufacturer: Digi International
Product Model: 160
Product Name: EtherLite 160 Terminal Server
Product Line: EtherLite

Physical Characteristics

Height: 1.2"
Width: 11.5"
Depth: 5.4"
Weight (Approximate): 3.10 lb
Color: Black

Interfaces/Ports

Number of Network (RJ-45) Ports: 17
Network (RJ-45): Yes

Other

Certifications & Standards:
- FCC Class A
- CE Mark
- DOC Class A
Additional Information:
- Heat Flow Rate: 62 BTU/hr
- Built-in Devices Status: LCD
- Connectivity Technology: Cable
- Expansion Slots Total (Free): 1 ( 1 ) x expansion slot
- Multiple concurrent Telnet/SSH sessions (essentially unlimited)
- OpenSSH v2 server
- OpenLDAP
- NIS
- No inadvertent breaks - Solaris Ready
- Field-programmable flash for software updates
- Access ports via 10/100 Base-T network connection or serial port
- Optional Modem supports PPP, PAP, CHAP, Call Back
- Secure Access to administration functions from terminal, modem port, or over the network
- OptID/password security
- Configurable access rights

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Memory

Standard Memory: 512 KB
Memory Technology: SRAM

Warranty

Limited Warranty: 5 Year

Processor & Chipset

Processor Speed: 40 MHz

Extended Details
