Digi EtherLite Data Networking
Part #: 70001528 | SKU: DIG43897

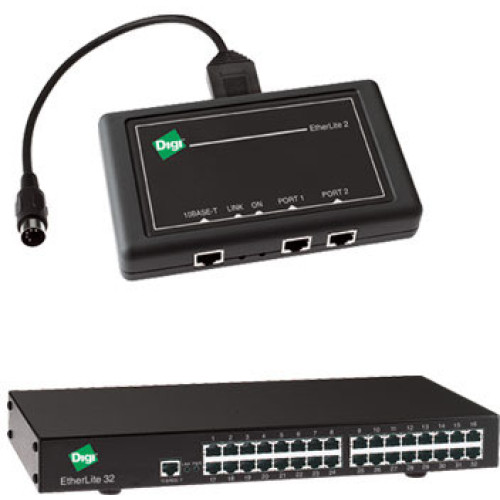

EtherLite from Digi offers a cost-effective network serial concentrator for retail/POS, process control, data collection and other applications requiring serial port connectivity over an Ethernet network. It multiplexes all serial ports into a single TCP/IP session, minimizing Ethernet traffic. It is available in 2, 8, 16 or 32 port versions with port speeds up to 115 Kbps. Device drivers are available for UNIX, Linux and Windows platforms.

Digi EtherLite Data Networking

Part Details: EtherLite, Lite 160 Terminal Server (16-Port, RJ45 Serial to Ethernet - International)

Need a different version of the Digi EtherLite Data Networking? View all 3 configurations

Additional Information

Manufacturer AIDC	Digi
Model Name	EtherLite

Digi EtherLite Specs (pdf)

General Information

Product Type: Terminal Server
Brand Name: Digi
Manufacturer: Digi International
Product Model: 160
Product Name: EtherLite 160 16-Port Terminal Server
Product Line: EtherLite

Physical Characteristics

Height: 1.2"
Width: 11.5"
Depth: 5.4"
Weight (Approximate): 3.10 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 17
Network (RJ-45): Yes

Other

Additional Information:
- CPU : 40 MHz 80C186 embedded microcontroller
- RS-232/422 switchable model

Memory

Standard Memory: 512 KB
Memory Technology: SRAM

Network & Communication

Ethernet Technology: Fast Ethernet

Extended Details
