| Manufacturer AIDC | Digi |
|---|---|
| Model Name | One TS |

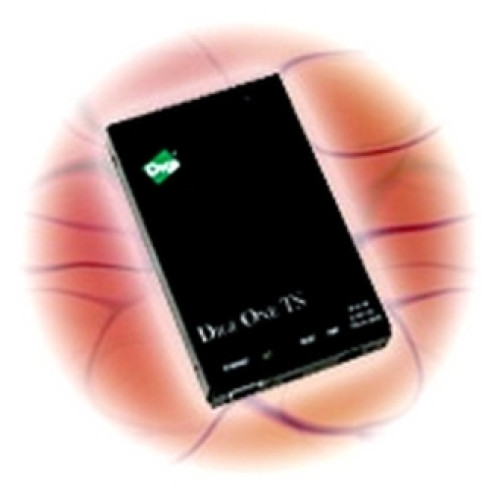

Digi One TS Specs
General Information
- Product Type: Device Server
- Product Series: TS
- Brand Name: Digi
- Manufacturer: Digi International
- Product Name: One TS Device Server
- Product Line: Digi One
Physical Characteristics
- Height: 5.4"
- Width: 3.3"
- Depth: 0.9"
- Form Factor: Desktop
- Weight (Approximate): 2.25 oz
Interfaces/Ports
- Number of Network (RJ-45) Ports: 2
- Network (RJ-45): Yes
Other
- Certifications & Standards:
- FCC Part 15, A
- CE
- EN5024-1
- EN 50082-1
- UL 1950
- CSA 22.2 No 950
- IEEE 802.3af compliant
- Compatibility:
- Operating systems:
- AIX
- HP-UX
- Linux
- Microsoft® Windows XP®
- Microsoft Windows 2000®
- Microsoft Windows NT®
- SCO® OpenServer
- SCO UnixWare
- Solaris (Intel)
- Solaris (SPARC)
- TCP/UDP Socket Services are operating system independent
- Additional Information:
- Easily network-enable virtually any serial device
- Patented Digi RealPort® Technology for COM or TTY port control and management
- Switch selectable EIA-232/422/485 for simple interfacing to any type of serial device.
- Monitoring and diagnostic utility for simple and efficient device monitoring and troubleshooting
- Data Security via SSH v2
- Port Buffering for data capture
- Easy configuration through web interface (HTTP)
- Industry leading low latency
- Baud rates up to 230 Kbps
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Warranty
- Limited Warranty: 5 Year
