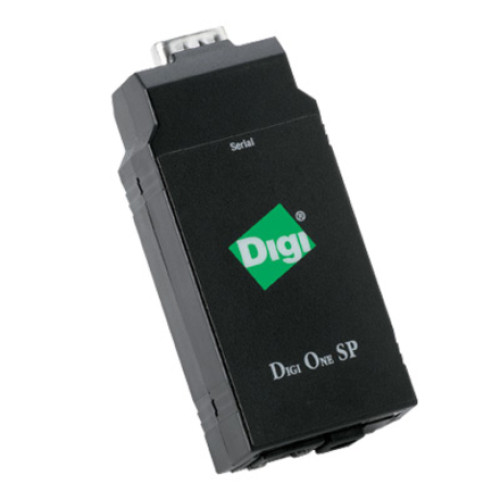

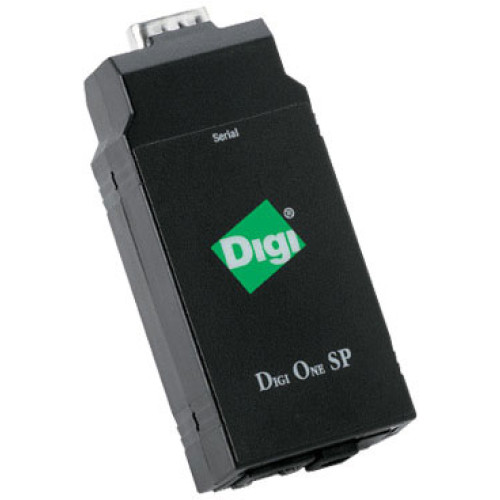

Digi One SP Device Server Console & Device Servers
Part #: 70001851 | SKU: DIG18581

One SP Device Server from Digi delivers standard serial-to-Ethernet connectivity and is ideal for serial tunneling or applications in which COM ports or TCP/UDP socket functionality is needed. It can be easily configured through a HTTP web interface or through an application provided with the installation CD. The model is easy to install locally or remotely through a variety of IP addressing methods, including DHCP, RARP, and ARP-Ping.

Digi One SP Device Server Console & Device Servers

Part Details: One SP Device Server, RS-232/422/485 switch selectable ports, DB-9M serial connector, Baud rates up to 230 Kbps, 10/100Base-T Ethernet support, Patented RealPort technology for COM and TTY ports, LED status for link and power, Minimum Order of 10.

Need a different version of the Digi One SP Device Server Data Networking? View all 1 configurations

MSRP: $360.00 Price: $272.37

In Stock

Additional Information

Manufacturer AIDC	Digi
Model Name	One SP Device Server

Digi One SP Device Server Specs (pdf)

General Information

Product Type: Device Server
Brand Name: Digi
Manufacturer: Digi International
Product Model: Digi One SP
Product Name: One SP Device Server
Product Line: Digi One

Physical Characteristics

Height: 3.7"
Width: 1.7"
Depth: 0.9"
Form Factor: Desktop
Weight (Approximate): 2.24 oz

Interfaces/Ports

Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Serial Port: Yes
Number of Serial Ports: 1

Other

Certifications & Standards:
- FCC Part 15, A
- CE
- EN5024-1
- EN 50082-1
- UL 1950
- CSA 22.2 No 950
Compatibility: RealPort drivers for COM/TTY support: - AIX - HP-UX - Linux - Microsoft® Windows 98/98SE - Microsoft® Windows ME - Microsoft® Windows XP® - Microsoft Windows 2000® - Microsoft Windows NT® - SCO® OpenServer - SCO UnixWare - Solaris (Intel) - Solaris (SPARC)
Additional Information:
- Easy configuration using install CD
- Patented Digi RealPort® technology for COM or TTY port control and management
- TCP/UDP Socket Services for broad device connectivity and application use
- Auto-connect the serial device to networked server using raw, Telnet, Rlogin
- Reverse Telnet for easy access of serial devices from network
- Easy configuration through web interface (HTTP)
- Switch selectable EIA-232/422/485 for simple interfacing to any type of serial device
- Full modem and hardware flow control
- Input power supports 9-30Vdc @ .5Amps max

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Warranty

Limited Warranty: 5 Year

Extended Details

Digi One SP Device Server Console & Device Servers Part #: 70001851 | SKU: DIG18581
