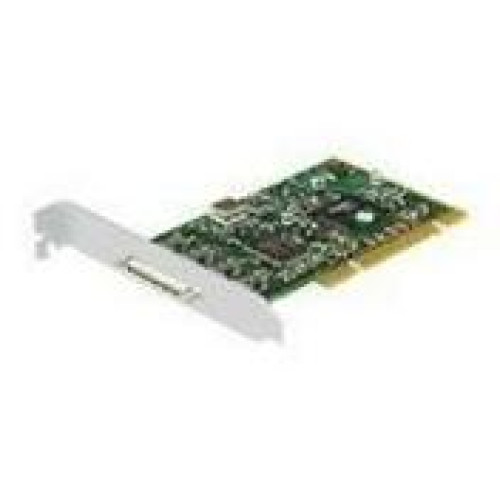

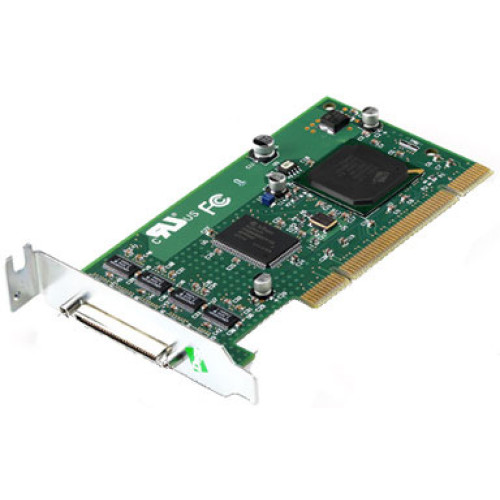

Digi AccelePort Xp Data Networking
Part #: 77000706 | SKU: DIG18642

The Digi AccelePort Xp makes device connectivity easy with excellent throughput, an unrivaled feature set, high reliability, and ease of installation. It features Application Specific Integrated Circuit (ASIC), an 80 Mhz RISC processor and a bus mastering design to reduce CPU utilization. External options connect to the adapter using a SCSI HD-68 connector, reducing cable clutter and increasing connection reliability. It is capable of supporting data speeds of 921.6 Kbps bi-directionally on all ports. Its accessories include PortAssist Manager software, DB-9, DB-25 and RJ-45 connector options that include on-board connectors, fan-out cables, external I/O boxes and rack-mountable chassis.

Digi AccelePort Xp Data Networking

Part Details: AccelePort Xp, Universal PCI card (3.3V & 5V), 4 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals

Need a different version of the Digi AccelePort Xp Data Networking? View all 2 configurations

Additional Information

Manufacturer AIDC	Digi
Model Name	AccelePort Xp

Digi AccelePort Xp Specs (pdf)

General Information

Product Type: Multiport Serial Adapter
Product Series: Xp
Brand Name: Digi
Manufacturer: Digi International
Product Name: Xp 4-port Serial Adapter

Technical Information

Data Transfer Rate: Up to 921.60 Kbps Full-duplex
Host Interface: PCI
Protocols: EIA-232
Platform Supported: PC

Physical Characteristics

Height: 2.5"
Width: 4.7"
Form Factor: Plug-in Card
Dimensions: 2.5" Height x 0.7" Width x 4.7" Depth
Thickness: 725 mil
Weight (Approximate): 6 oz

Interfaces/Ports

Ports: 1 x 68-pin HD-68 Female - SCSI
Ports Expandability:
- 4 x 25-pin DB-25 RS-232 - Serial, Via Cable (Optional)
- 4 x 9-pin DB-9 RS-232 - Serial, Via Cable (Optional)

Other

Certifications & Standards:
- FCC Part 15
- Class B
- AS3548
- EN55022
- Class B
- EN55024
- EN60950
- UL 1950
- CSA 22.2
- No. 950
- VCCI Class B
- ICES-003
- Class B
Compatibility:
- Microsoft Windows .NET Server 2003
- Microsoft Windows XP, 2000, NT
- Microsoft Windows 95/98/Me
- Solaris SPARC and Intel
- Novell NetWare
- HP-UX
- Linux
- OpenVMS
- OS/2
- QNX
- SCO OpenServer
- SCO UnixWare
- Tru64 Most drivers ship with product on CD-ROM. Drivers and driver updates also available on our Web-site at www.digi.com/drivers.
Additional Information:
- Universal PCI bus slot support 3.3V and 5V
- PCI 2.3 compliant/PCI-X compatible
- Simultaneously supports data speeds of 921.6 Kbps, bi-directionally, on all ports
- Full modem control and hardware and software flow control
- Provides wide array of cabling options with SCSI HD-68 connections
- Surge protection on all signals for superior reliability
- Small form factor meets low profile PCI specifications
- Hardware / software handshaking support
- Industry standard surge suppression on all signals
- Bus mastering design reduces CPU utilization
- ENVIRONMENTAL: - Air movement: 30 CFM forced

Power Description

Input Current:
- 640 mA @ 5 V DC
- 100 mA @ 12 V DC
Input Voltage:
- 5 V DC 5%
- 12 V DC 5%

Environmental Conditions

Altitude: 0 ft to 12000 ft
Humidity: 5 to 90% Relative Humidity
Temperature:
- 50°F (10°C) to 131°F (55°C) Operating
- -13°F (-25°C) to 185°F (85°C) Storage

Warranty

Limited Warranty: 5 Year

Processor & Chipset

Processor: 1 x 80 MHz RISC

Extended Details

Digi AccelePort Xp Data Networking Part #: 77000706 | SKU: DIG18642
