Elo 1215L Specs
The 1000 Series of touchmonitors are designed, developed and built
to provide the most cost-effective touch solutions for system
integrators and VARs. Aimed at the fast-changing retail POS and
hospitality markets, they provide reliable, durable operation and
come from the worldwide leader in touchmonitors, Elo TouchSystems.
The space-saving 1215L features a choice of touch technologies and
spill resistant sealing.
Features
- Small footprint of a 12" LCD
- Economical and reliable
- Up to 800 x 600 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology, the most widely used for retail applications (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), or Surface Capacitive Technology for compatibility with some existing systems
- Touchscreen sealed against spills
- Dual serial/USB interface
- Removable base and VESA mounting option
- Mounting holes on base bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
Specifications
| Model | 1215L |
| Series | 1000 |
| Availability |
Worldwide |
| Case/bezel color | Dark gray |
| Display | Size: 12.1"
diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3 |
| Useful screen area | Horizontal: 9.7" (246 mm) Vertical: 7.27" (184.5 mm) |
| Monitor dimensions | Width: 11.86" (300.93 mm) Height: 11.26" (285.85 mm) Depth: 6.61" (167.69 mm) |
| Optimal (native) resolution | 800 x 600 at 56, 60, 70 or 75 Hz |
| Other supported resolutions | 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz |
| Colors | 16.2 million with dithering |
| Brightness LCD panel |
200 cd/m2 (typical) |
| Brightness LCD panel with touchscreen |
AccuTouch: 164 cd/m2
(typical) IntelliTouch: 184 cd/m2 (typical) Surface Capacitive: 170 cd/m2 (typical) |
| Response time | 35 msec (typical) |
| Viewing angle (typical, from center) |
Horizontal (left/right): +/-70°
or 140° total Vertical (up/down): 60°/50° or 110° total |
| Contrast ratio | 500:1 (typical) |
| Input video format | Analog (no proprietary video card needed) |
| Input sync format | Separate horizontal and vertical sync, composite sync and sync-on-green |
| Input video signal connector | Mini D-Sub 15-Pin VGA type |
| Input frequency | Horizontal: 31.5-48 kHz Vertical: 56.3-75 Hz |
| Power supply | Type: AC/DC input internal power
only AC Input (line) voltage: 85-265 VAC, 47–63 Hz DC Input (line) voltage: 12.0 V ± 0.75V |
| Power dissipation | 16 W typical, 20 W max. |
| Temperature | Operating: 0oC to
40oC Storage: -20oC to 60oC |
| Humidity | Operating: 20%-80% Storage: 10%-90% noncondensing |
| Weight (approx.) |
Actual: 7.92 lb (3.59 kg) Shipping: 13.2 lb (5.99 kg) |
| Warranty | Backlight lamp life: minimum
50,000 hours to half brightness MTBF: 50,000 hours demonstrated |
| Agency approvals | UL/cUL, TUV-GS, CE, FCC/IC/VCCI/C-Tick Class B |
| On-screen display (OSD) | Digital OSD |
| User's controls | OSD buttons: menu, up, down,
select, power OSD: contrast, brightness, H/V position, recall default, RGB (color temp), OSD exit, clock, phase, sharpness, OSD H/V position, OSD time, auto adjust, language (English, German, Spanish, Japanese, French), input select OSD disable/enable: power, OSD menu |
| Mounting options | Threaded-through mounting holes,
under base Removable base 75 mm VESA mount |
Refine Your Options
-

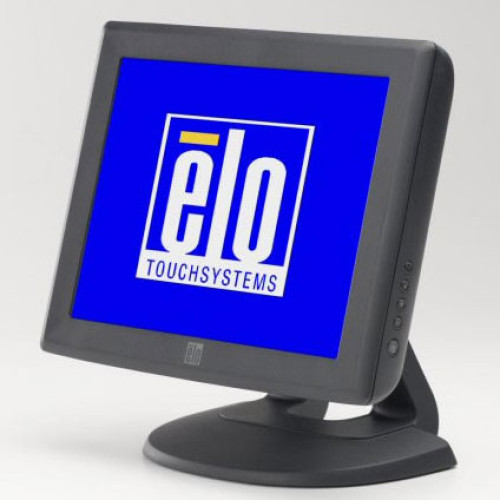

Elo 1215L Touchscreen
