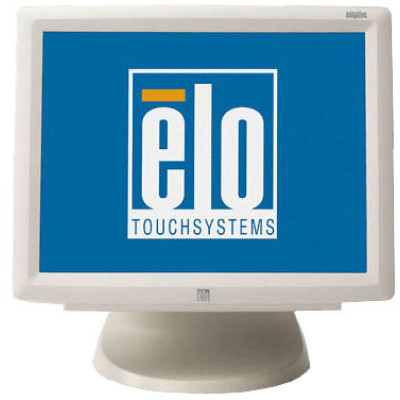

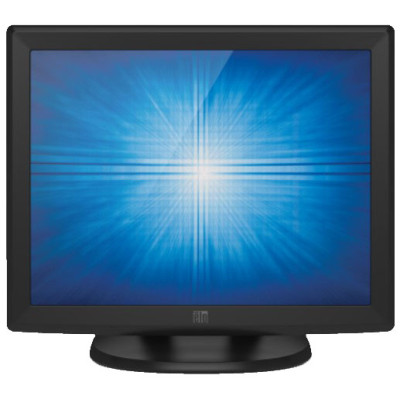

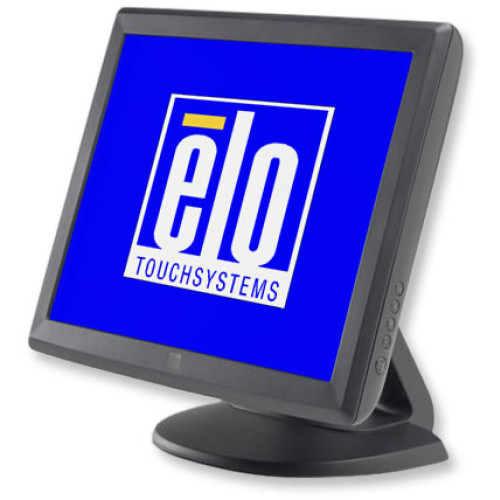

Elo 1515L Touch screen

Elo 1515L Touch screen

Elo's 1515L 15" LCD is designed to provide a single-source selection of entry-level LCD monitors, aimed at the fast-changing retail POS and hospitality markets. While offered at a lower price-point, they still provide reliable, durable operation. This model includes AccuTouch five-wire resistive technology activated by fingernails, gloves, credit cards or stylus or IntelliTouch Surface Wave Technology activated by finger only. The 1515L offers a dual serial/USB interface, removable base, controls on the side with lockout function and digital on-screen display.
Call For Price
See all options
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Economical and reliable
  • Removable base and VESA mounting option
  • Sealed touchscreen
  • Internal power supply
  • Dual serial/USB interface
  • Mounting holes on base bottom for tabletop security
  • Up to 1024 x 768 resolution at 75 Hz
  • Worldwide agency approvals
The 1000 Series of touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; or IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

Features

  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for superior image quality, IntelliTouch Surface Wave Technology (activated with finger or glove)
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable base and VESA mounting option
  • Mounting holes on base bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply
  • Worldwide agency approvals

Specifications

Model1515L
Series1000
AvailabilityWorldwide
Case/bezel colorDark gray
DisplaySize: 15.0" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 4 x 3
Useful screen areaHorizontal: 12.0" (304 mm)
Vertical: 9.0" (228 mm)
Monitor dimensionsWidth: 13.8" (350 mm)
Height (inc. base): 12.2" (310 mm)
Depth (inc. base): 6.9" (175 mm)
Optimal (native) resolution1024 x 768
Other supported resolutions1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Colors16.2 million with dithering
Brightness
LCD panel
250 cd/m2 (typical)
Brightness
LCD panel with touchscreen
AccuTouch: 205 cd/m2 (typical)
IntelliTouch: 230 cd/m2 (typical)
Response time17 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): +/-60° or 120° total
Vertical (up/down): 40°/60° or 100° total
Contrast ratio400:1 (typical)
Input video formatRGB analog
Input sync formatSeparate H & V sync, composite sync, sync-on-green
Input video signal connectorMini D-Sub 15-Pin VGA type
Input frequencyHorizontal: 31.5-60.2 kHz
Vertical: 56.3-75 Hz
Power dissipation30 W max.
Power supplyType: Internal, with jack to accept power from optional external brick
Input (line) voltage: 100-240 VAC, 50/60 Hz
Optional input (line) voltage: +12VDC +/-5%
TemperatureOperating: 0°C to 40°C
Storage: -20°C to 60°C
HumidityOperating: 20%-80%
Storage: 10%-90%
noncondensing
Weight
(approx.)
Actual: 10.6 lb (4.8 kg)
Shipping: 15.4 lb (7.0 kg)
WarrantyBacklight lamp life: typical 30,000 hours to half brightness
MTBF: 50,000 hours demonstrated
Agency approvalsUL/cUL, FCC, CE, TUV-GS, VCCI, IC, C-Tick
On-screen display (OSD)Digital OSD
User's controls

OSD buttons: menu, up, down, select, power
OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, language (English, German, Spanish, Japanese, French)
OSD disable/enable: power, OSD menu

Mounting optionsRemovable base
75 mm VESA mount
Threaded-through mounting holes, under base
Extended Details
Refine Your Options
  1. E210772 - Elo 1515L Touch screen

    1515L, 15" LCD, AccuTouch (resistive) Touch Technology, Dual Serial/USB Touch Interface, and Anti-glare Surface Treatment - Color: Dark gray
    In Stock
  2. E700813 - Elo 1515L Touch screen

    1515L, 15" LCD, IntelliTouch (surface wave) Touch Technology, Dual Serial/USB Interface, and Anti-glare Surface Treatment - Color: Dark gray
    In Stock
  3. E817158 - Elo 1515L Touch screen

    1515L, 15" LCD, Accousting Pulse Recognition Touch Interface, USB Interface, Anti-glare
  4. A85856-000 - Elo 1515L Touch screen

    1515L, 15" LCD Desktop Monitor, Dual Serial/USB Interfaces, Intellitouch, Color: Dark gray
  5. E849124 - Elo 1515L Touch screen

    1515L, 15" LCD Desktop Monitor, Dual Serial/USB Interfaces, AccuTouch, Color: Dark gray
  6. E344320 - Elo 1515L Touch screen

    1515L, 15" LCD, AccuTouch (resistive) Touch Technology, Dual Serial/USB Interface, and Anti-glare Surface Treatment - Color: Dark gray. EMEA VERSION - NOT FOR USE IN USA
  7. E176383 - Elo 1515L Touch screen

    1515L, 15" LCD, Acoustic Pulse Recognition Touch Technology, USB Touch Interface, and Anti-glare Surface Treatment - Color: Dark gray
  8. E538481 - Elo 1515L Touch screen

    1515L, 15" LCD, USB, Desktop, Intellitouch, Beige
  9. E290484 - Elo 1515L Touch screen

    1515L, 15" LCD, AccuTouch (resistive) Touch Technology, Dual Serial/USB Touch Interface, and Anti-glare Surface Treatment - Color: Beige
  10. E72932-000 - Elo 1515L Touch screen

    1515L, 15" LCD Desktop Monitor, Dual Serial/USB Interfaces, AccuTouch, Color: Dark gray
