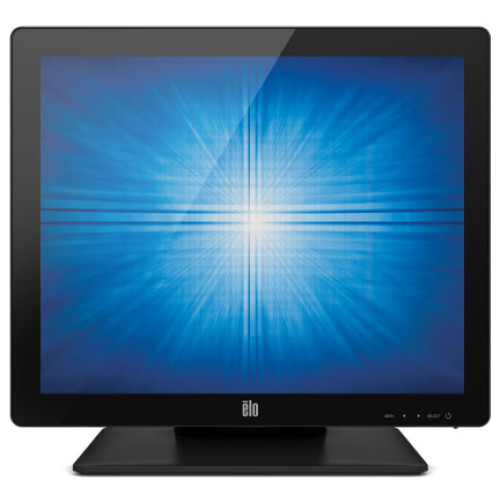

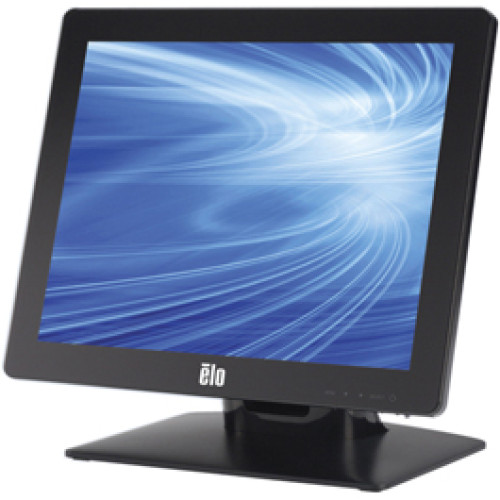

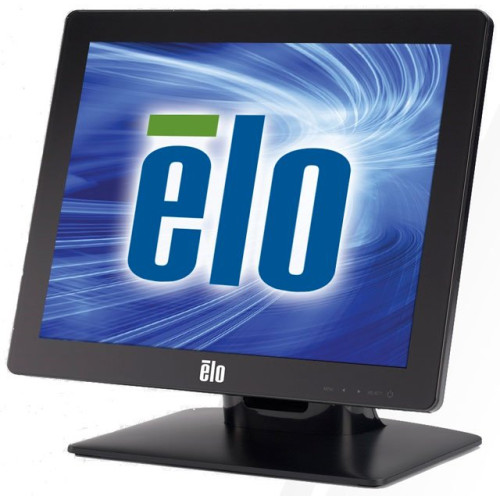

Elo 1517L Touchscreen
Part #: E273226 | SKU: ELO263637

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.?The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.

Elo 1517L Touchscreen

Part Details: 1517L 15-inch LCD (LED Backlight) Desktop, WorldWide, IntelliTouch (SAW) Single-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black
Price: $637.50
In Stock

Additional Information

Manufacturer Elo
Model Name 1517L

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Backlight Technology: LED
  • Adjustable Display Angle: Yes
  • Screen Mode: XGA-2
  • Features: Security Lock
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
    • Pole Mount
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 16 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1517L
  • Product Name: 1517L Rev B 15-inch Multifunction Desktop

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 12.50"
  • Width with Stand: 14.10"
  • Depth with Stand: 7.80"
  • Color: Black
  • Weight (Approximate): 9.48 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
    • China RoHS
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • IEC 60320 C6
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • IEC 60320 C6
  • Package Contents:
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch and Video Cables
    • Power Cable
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch and Video Cables
    • Power Cable

Power Description

  • Operating Power Consumption: 12 W
  • Standby Power Consumption: 1.70 W
  • Off-Mode Power Consumption: 1.30 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 12 V DC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 700:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
