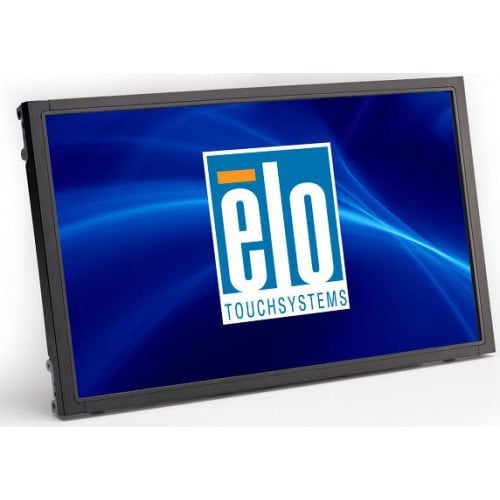

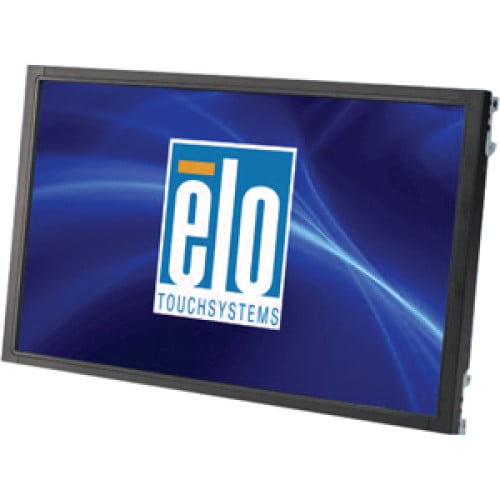

Elo 2244L Touchscreen
Part #: E485927 | SKU: ELO210103

Available with IntelliTouch or IntelliTouch Plus surface acoustic wave touchscreen technology or Acoustic Pulse Recognition (APR), the 2244L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission for an accurate touch response and vivid images. APR is the recent ELO Touch Solutions innovation that supports touch activation by any stylus pen, glove, bare finger and fingernail, while IntelliTouch is the optical standard of touch and widely used in kiosk and gaming applications. Both are pure glass construction to deliver a clear, bright and long lasting performance and it also makes the touchscreens scratch resistant. It is nearly impossible to physically "wear out" these touchscreens.

Elo 2244L Touchscreen

Part Details: Elo 2244L 21.5" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms - CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black - WEEE, RoHS, China RoHS - 3 Year

Need a different version of the Elo 2244L Touchscreen? View all 4 configurations

Additional Information

Manufacturer	Elo
Model Name	2244L

Elo 2244L Specs (pdf)

Technical Information

Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Display Orientation: Landscape/Portrait
Screen Mode: Full HD
Screen Size: 21.5"
Aspect Ratio: 16:9
Response Time: 14 ms

General Information

Product Type: Open-frame LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 2244L
Product Name: 2244L 22-Inch Open-Frame Touchmonitor

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 11.7"
Width: 20.2"
Depth: 1.7"
Color: Black
Weight (Approximate): 10.58 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Video

Brightness: 250 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1920 x 1080
Contrast Ratio: 1,000:1

Touchscreen Information

Touchscreen: Yes
Multi-touch Screen: Yes
Touchscreen Type: Capacitive

Power Description

Operating Power Consumption: 39 W
Standby Power Consumption: 1.50 W
Off-Mode Power Consumption: 1 W
