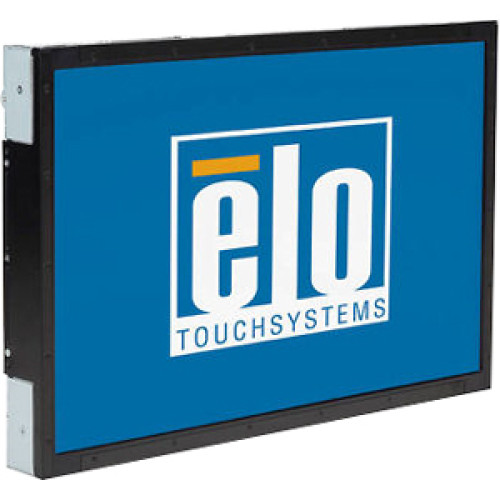

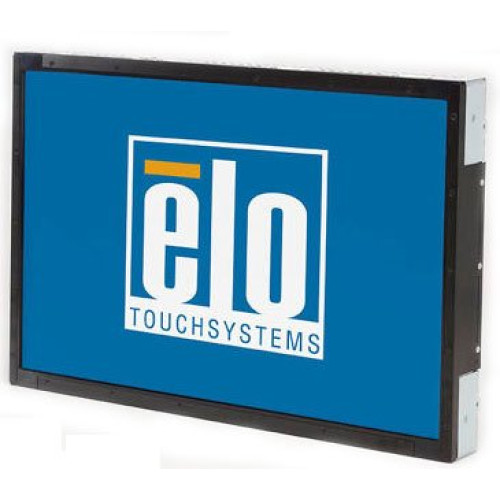

Elo 2240L Touchscreen
Part #: E496859 | SKU: ELO182449

The ELO 2240L features an innovative design which provides a seamless fit for gaming and kiosk applications, and can be deployed in both landscape and portrait orientations. With a front-facing metal hardened anodized bezel and L-mounting brackets and slim dimensional profile (500x 332x80 mm), the 2240L offers installation flexibility in a variety of entertainment and retail environments.

Elo 2240L Touchscreen

Part Details: Elo 2240L 22" Open-frame LCD Touchscreen Monitor - 16:10 - 16 ms - 22" Class - Surface Acoustic Wave - 1680 x 1050 - WSXGA+ - 16.7 Million Colors - 1,000:1 - 400 Nit - DVI - USB - VGA - Black - WEEE, RoHS, China RoHS - 3 Year

Additional Information

Display Type LCD
Form Factor Open-Frame
Manufacturer Elo
Model Name 2240L

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Display Orientation: Landscape/Portrait
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 16 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2240L
  • Product Name: 2240L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 13.1"
  • Width: 19.7"
  • Depth: 3.1"
  • Color: Black
  • Weight (Approximate): 16.53 lb

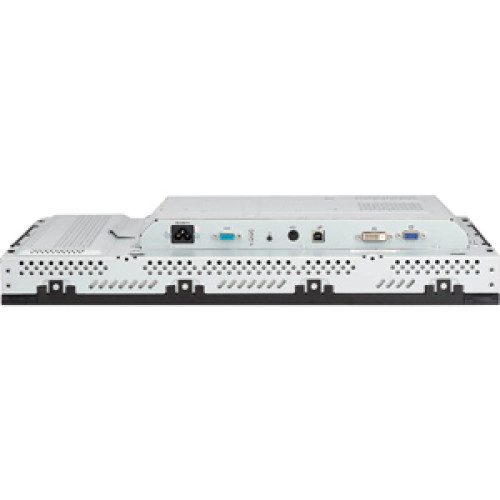

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
    • China RoHS
  • Certifications & Standards:
    • UL
    • cUL
    • FCC
    • C-Tick
    • S-mark
    • NOM
    • IMERC
    • CE
    • PCT
    • CCC
    • MIC
    • BSMI
    • VCCI
    • UL
    • cUL
    • FCC
    • C-Tick
    • S-mark
    • NOM
    • IMERC
    • CE
    • PCT
    • CCC
    • MIC
    • BSMI
    • VCCI

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 400 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 60 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
