Newer Version Is Available

1517L, AccuTouch, USB/RS-232, VGA, Black, LED Backlght
$478.55
Ships Today
- +

Product was successfully added to your shopping cart.
263643 Elo

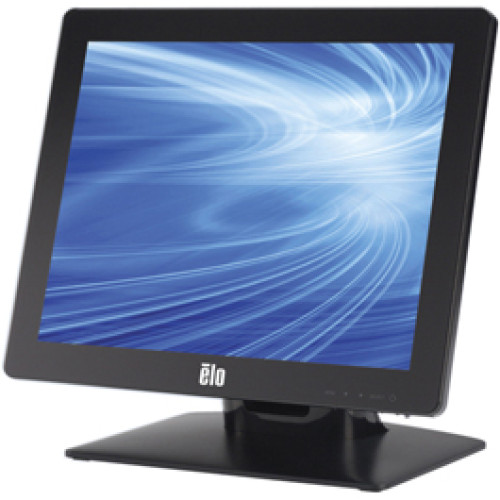

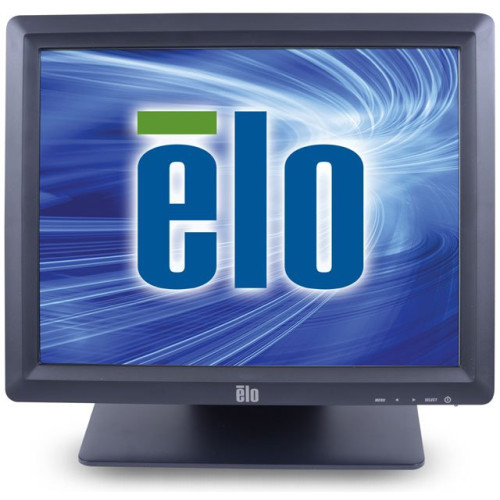

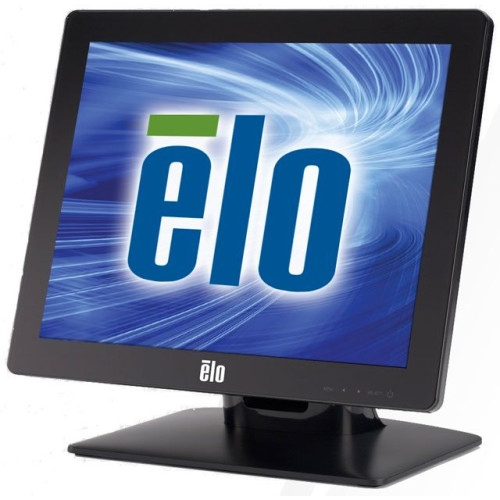

E532051 - Elo 1517L Touch screen

1517L, 15 INCH LCD, AccuTouch, ANTI GLARE, WHITE
InStock

Additional Information

Item Condition New
Manufacturer Elo

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Backlight Technology: LED
  • Screen Mode: XGA
  • Features: Security Lock
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 16 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1517L Rev B
  • Product Name: 1517L Rev B 15-inch Multifunction Desktop

Physical Characteristics

  • Height with Stand: 12.50"
  • Width with Stand: 14.10"
  • Depth with Stand: 7.80"
  • Color: White
  • Weight (Approximate): 9.48 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • Argentinian S-Mark
    • Australia C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
    • Argentinian S-Mark
    • Australia C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
  • Package Contents:
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch Cable
    • Video cable
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch Cable
    • Video cable

Power Description

  • Operating Power Consumption: 12 W
  • Standby Power Consumption: 1.70 W
  • Off-Mode Power Consumption: 1.30 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 700:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Warranty

  • Limited Warranty: 3 Year

Built-in Devices

  • Built-in Devices: USB Hub
