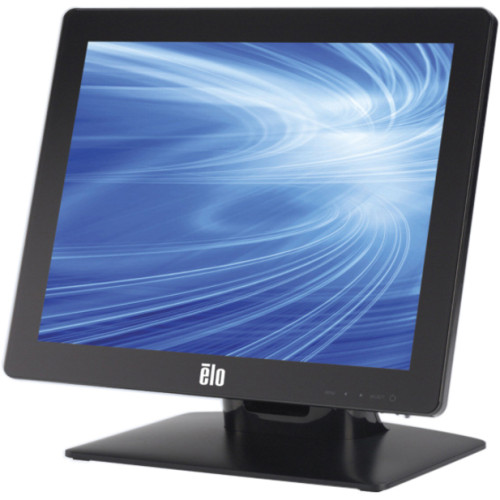

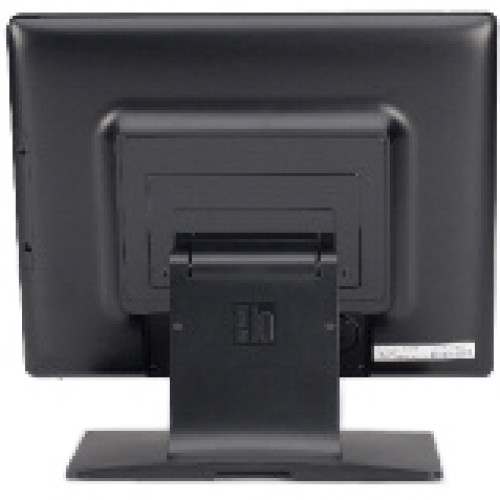

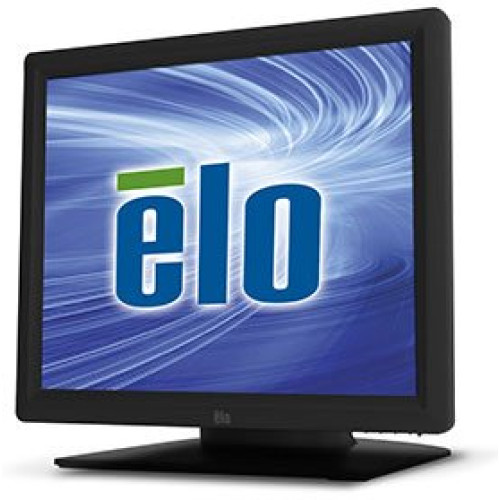

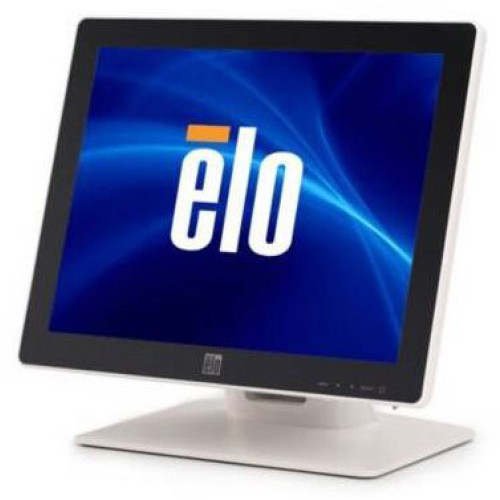

Elo 1717L Touchscreen
Part #: E650075 | SKU: ELO195027

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

Elo 1717L Touchscreen

Part Details: Elo 1717L 17" LCD Touchscreen Monitor - 5:4 - 8 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 200 Nit - LED Backlight - USB - VGA - White

Additional Information

Manufacturer Elo
Model Name 1717L

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Screen Mode: SXGA
  • Mount Type:
    • Wall Mountable
    • Arm-mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 8 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1717L
  • Product Name: 1717L 17" LCD Desktop Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 12.13 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height: 12.9"
  • Width: 15.4"
  • Depth: 1.9"
  • Color: White
  • Weight (Approximate): 8.53 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Video

  • Brightness: 200 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Power Description

  • Operating Power Consumption: 21 W
  • Standby Power Consumption: 1.10 W
  • Off-Mode Power Consumption: 1 W

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive
Extended Details
