Elo 1717L Touchscreen Elo 1717L Touchscreen Elo 1717L Touchscreen Elo 1717L Touchscreen Elo 1717L Touchscreen

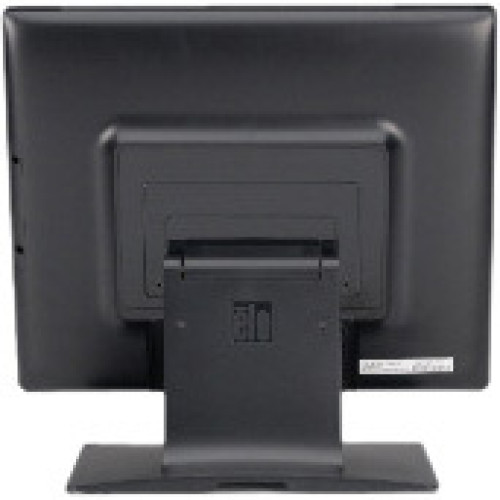

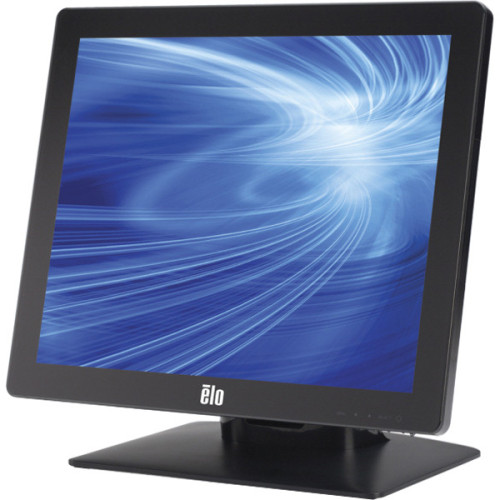

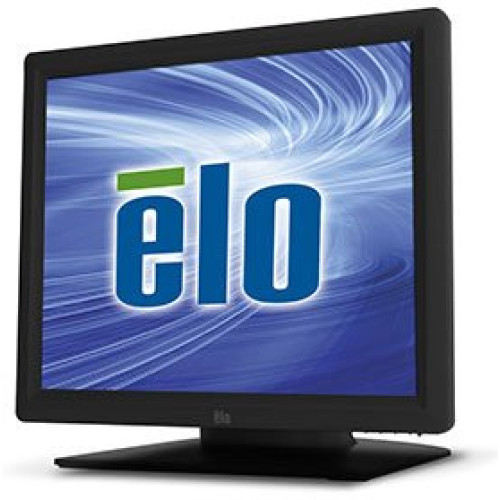

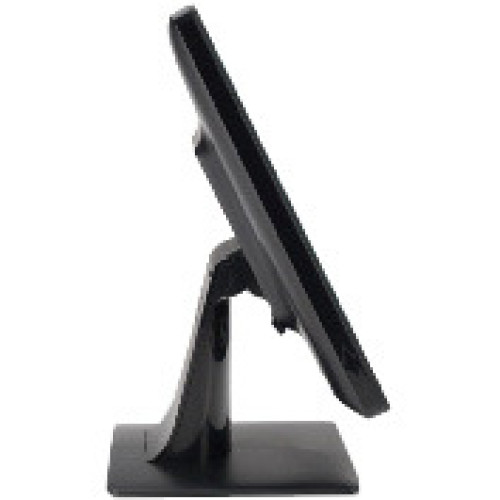

Elo 1717L Touchscreen
Part #: E679434 | SKU: ELO263647

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

Elo 1717L Touchscreen

Part Details: Elo 1717L Rev B 17" LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - USB - VGA - White - RoHS, China RoHS - 3 Year
Need a different version of the Elo 1717L Touchscreen? View all 10 configurations

Additional Information

Manufacturer Elo
Model Name 1717L
Elo 1717L Specs Elo 1717L Specs (pdf)

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Screen Mode: SXGA
  • Features: Security Lock
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 5 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1717L Rev B
  • Product Name: 1717L Rev B 17-inch Multifunction Desktop

Physical Characteristics

  • Height with Stand: 14.20"
  • Width with Stand: 15.40"
  • Depth with Stand: 7.80"
  • Color: White
  • Weight (Approximate): 11.90 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • Argentinian S-Mark
    • Australia C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
    • Argentinian S-Mark
    • Australia C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
  • Package Contents:
    • 1717L Rev B 17-inch Multifunction Desktop
    • Detachable Touch Cable
    • Video cable
    • 1717L Rev B 17-inch Multifunction Desktop
    • Detachable Touch Cable
    • Video cable

Power Description

  • Operating Power Consumption: 20 W
  • Standby Power Consumption: 1.80 W
  • Off-Mode Power Consumption: 1.40 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Warranty

  • Limited Warranty: 3 Year

Built-in Devices

  • Built-in Devices: USB Hub
Extended Details
