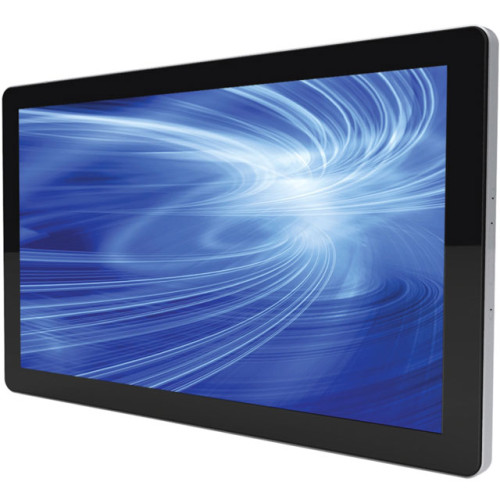

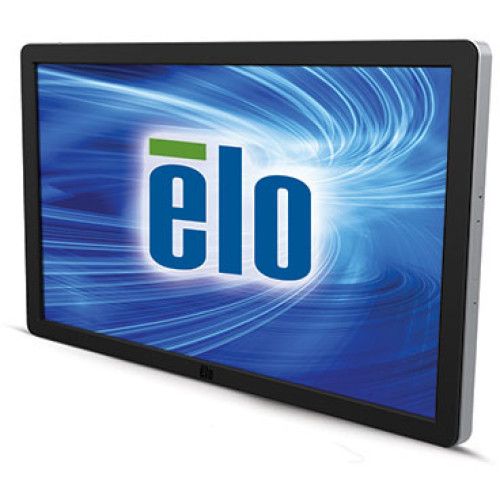

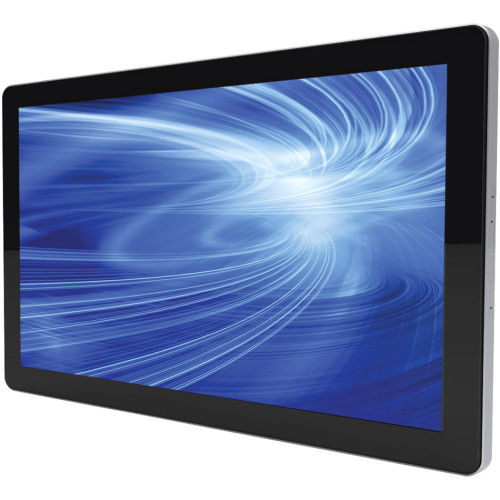

Elo 3201L Digital Signage Display
Part #: E739717 | SKU: ELO242557

The 3201L 32-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.1 inches (78 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount. Available with IntelliTouch Plus surface acoustic wave multi-touch technology, display clarity is undistorted due to use of clear glass. Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

Elo 3201L Digital Signage Display

Part Details: Elo 3201L 32-inch Interactive Digital Signage Display (IDS) - 32" LCD - Touchscreen - 1920 x 1080 - LED - 350 Nit - HDMI - USB

Need a different version of the Elo 3201L Digital Signage Display? View all 2 configurations

Additional Information

Manufacturer AIDC	Elo
Model Name	3201L

Elo 3201L Specs (pdf)

General Information

Product Type: Digital Signage Display
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 3201L
Product Name: 3201L 32-inch Interactive Digital Signage Display (IDS)

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 400 x 400
Height: 19"
Width: 31.1"
Depth: 2.8"
Weight (Approximate): 33 lb
Color: Black

Interfaces/Ports

USB: Yes
HDMI: Yes
VGA: Yes
DisplayPort: Yes

Display & Graphics

HDCP Supported: Yes
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Touchscreen: Yes
Display Screen Type: LCD
Backlight Technology: LED
Screen Size: 32"
Aspect Ratio: 16:9
Display Resolution: 1920 x 1080
Response Time: 8 ms
Touchscreen Technology: Projected Capacitive
Multi-touch Screen: Yes

Video

Scan Format: 1080p
Native Contrast Ratio: 3,000:1
Brightness: 350 Nit
Standard Refresh Rate: 60 Hz

Audio

Speakers: Yes
Number of Speakers: 4
RMS Output Power: 20 W

Warranty

Limited Warranty: 3 Year

Power Description

Power Consumption: 65 W
