34658 Elo

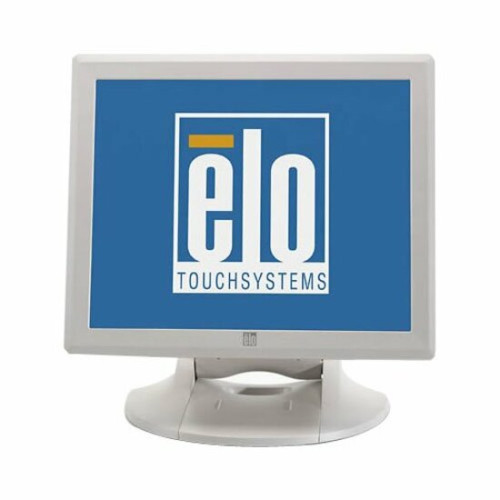

E759926 - Elo 1729L Touch screen

1729L, 3000 Series 1729L 17 inch LCD Integrated Multifunction Touchmonitor (AccuTouch Touch Technology, USB Touch Interface, and Anti-glare Surface Treatment) - Color: Beige


Elo's 1729L 17 inch LCD integrated multifunction touchmonitor is an attractive solution for POS applications. Its optional peripherals can easily be integrated into the 1729L's compact design. A choice of up to three of the optional peripherals can be installed including: the magnetic stripe reader, vacuum fluorescent, rear-facing LED customer display, biometric fingerprint recognition device, and speaker bar with/without a built in single or omnidirectional barcode scanner. Its 1280 x 1024 resolution with a 5 x 4 ratio displays clear, precise graphics, and a contrast ratio of 800: 1, together with a typical LCD panel brightness of 300 nits, provides bright, high contrast for improved readability.
  • Designed for touch with stable tilt base, adjustable and removable for VESA mounting, also mounting holes in base for secure desktop use
  • Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology and Surface Capacitive Technology
  • Multi-lingual on-screen display (OSD)
  • Three year warranty
  • Touchscreen sealed to resist dirt, dust, and splashes
  • Choice of gray or beige finish
  • Security lock receptacle
  • An internal USB hub for minimal external connections
  • Worldwide agency approvals
  • Long-lasting product cycle - enclosure controlled by Elo specifications
  • Choice of desktop, wall or VESA mount
  • Controls on the side plus lockout function for public use
  • Professional cable management hides cables from view
  • Seamless, integrated design

Additional Information

Manufacturer Elo

Recommended Accessories

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Mount Type: Desk Mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Product Series: 3000
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1729L
  • Product Name: 1729L Touchscreen LCD Monitor

Physical Characteristics

  • Height: 15"
  • Width: 15.4"
  • Depth: 9.4"
  • Color: Beige
  • Weight (Approximate): 19.32 lb


  • USB: Yes
  • VGA: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 1729L Touchscreen LCD Monitor
    • Power Cable
    • All Appropriate Touch/Audio/Video/Accessory Cables
    • 1729L Touchscreen LCD Monitor
    • Power Cable
    • All Appropriate Touch/Audio/Video/Accessory Cables


  • Standard Refresh Rate: 75 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive


  • Limited Warranty: 3 Year


  • Speakers: Yes

Built-in Devices

  • Built-in Devices: USB Hub
