36754 Elo

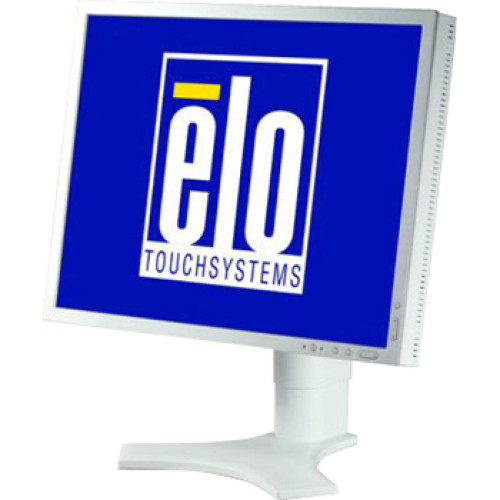

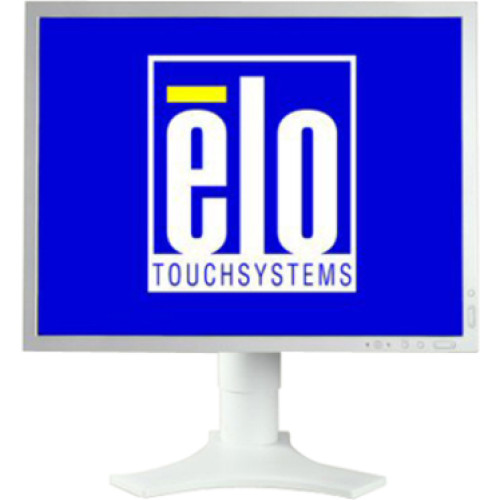

E802828 - Elo 2020L Touch screen

2020L, 20" LCD IntelliTouch (surface wave), USB, Desktop, Active matrix TFT. Color: Black
InStock

Description

The large display area of 2020L touchmonitor is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail. It has a carrying handle for easy transport and a quick release stand. The desktop base can be removed or reversed for wall mounting. It is available with AccuTouch Five-Wire Resistive Technology and serial interface. 2020L is a high-quality panel with 178 degree viewing angle.
  • Adjustable height
  • Available in black or beige
  • Controls on the side rather than the front
  • Vesa mounting option
  • Can be used in portrait mode
  • Quick release stand
  • Digital on-screen display (OSD)
  • High quality panel with 178 degree viewing angle
  • Sealed touchscreen
  • Desktop base can be removed or reversed for wall mounting
  • Carrying handle for easy transport

Additional Information

Screen Size 20
Display Type LCD
Touch Technology Surface Wave
Form Factor Desktop
Color Black
Interface USB
Manufacturer Elo

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Adjustable Display Angle: Yes
  • Adjustable Display Height: Yes
  • Adjustable Display Pivot: Yes
  • Display Orientation: Landscape/Portrait
  • Features: Digital Signage Ready
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
  • Screen Size: 20.1"
  • Aspect Ratio: 4:3
  • Response Time: 16 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2020L
  • Product Name: 2020L 20-Inch Desktop/Wall-Mount Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 24.25 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height with Stand: 22.28"
  • Width with Stand: 17.28"
  • Depth with Stand: 9.72"
  • Color: Black

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC
    • CE
    • UL
    • FCC
    • CE
    • UL

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 280 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1600 x 1200
  • Contrast Ratio: 700:1

Power Description

  • Operating Power Consumption: 50 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: IntelliTouch Surface Wave

Warranty

  • Limited Warranty: 3 Year
