175558 Elo

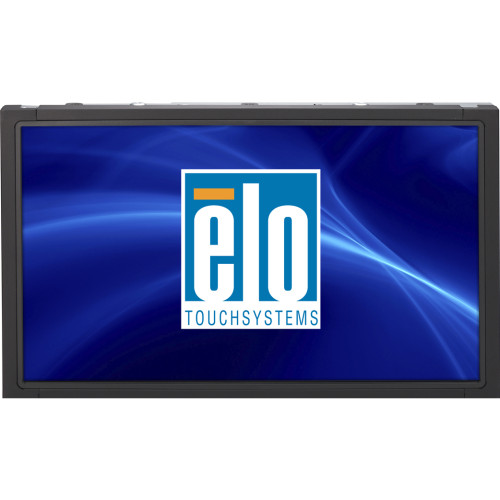

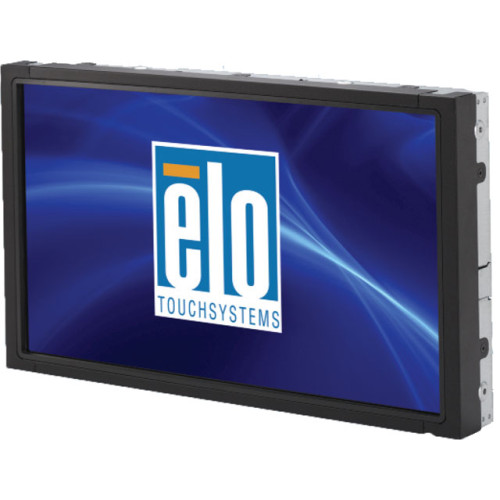

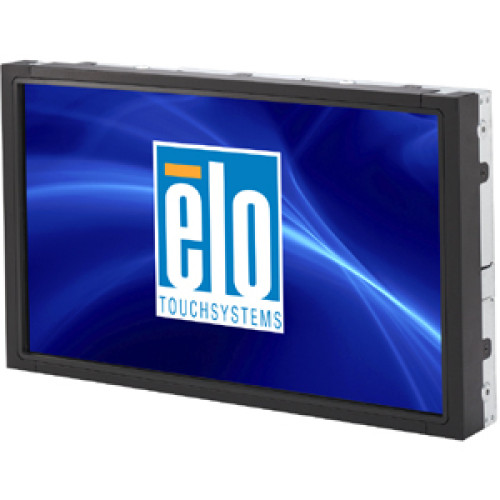

E805638 - Elo 1541L Touch screen

1541L, 15-INCH WIDE LCD OPEN FRAME, AccuTouch, USB CONTROLLER, ANTI-GLARE GLASS, DVI
InStock
$404.00 $365.82
Ships Today
- +

Description

The ELO 1541L features an LED backlight, a wide-screen16:9 aspect ratio LCD panel with the choice of either IntelliTouch Plus multi-touch or AccuTouch 5-wire resistive touchscreen. The 1541L expands the ELO family of touch solutions with flexible, energy-saving features.
  • 16: 9 aspect ratio (wide-screen)
  • Diagonal Size 15.6\"
  • High quality panel with 150 degrees (h) x 120 degrees (v) viewing angle
  • 500: 1 contrast ratio
  • Native Resolution 1366 x 768
  • Integrated precision mini-bezel with water-resistant 0.5 mm seal
  • Mounting options including rear-mount (with two included mounting brackets) and VESA mount
  • Choice of two industry-leading touchscreen technologies: AccuTouch 5-wire resistive, IntelliTouch Plus multi-touch surface acoustic wave
  • Worldwide agency approvals
  • Three-year warranty

Additional Information

Item Condition New
Manufacturer Elo

Recommended Accessories

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 130°
  • Backlight Technology: LED
  • Screen Mode: WXGA
  • Screen Size: 15"
  • Aspect Ratio: 16:9
  • Response Time: 16 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1541L
  • Product Name: 1541L 15-inch LCD Open-frame Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height: 8.7"
  • Width: 14.8"
  • Depth: 1.8"
  • Weight (Approximate): 6.48 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC

Power Description

  • Operating Power Consumption: 15 W
  • Standby Power Consumption: 2 W
  • Off-Mode Power Consumption: 1 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1366 x 768
  • Contrast Ratio: 500:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Warranty

  • Limited Warranty: 3 Year
