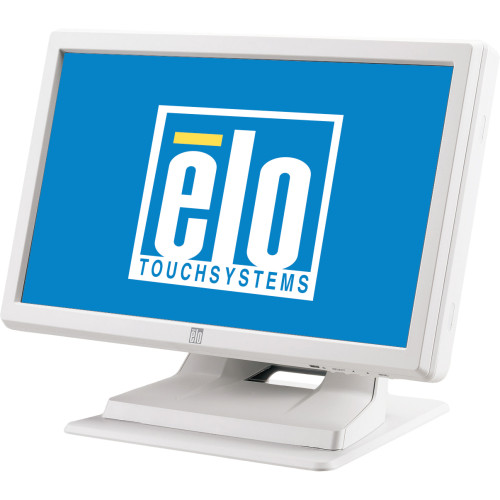

Elo 1919LM Touchscreen
Part #: E872193 | SKU: ELO207658

The ELO 1919LM 19" touchscreen is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 1919LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.

Elo 1919LM Touchscreen

Part Details: Elo 1919LM 19" LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Surface Acoustic Wave - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 300 Nit - Speakers - DVI - USB - VGA - White - RoHS, WEEE - 3 Year

Need a different version of the Elo 1919LM Touchscreen? View all 2 configurations

Additional Information

Manufacturer AIDC	Elo
Model Name	1919LM

Elo 1919LM Specs (pdf)

Technical Information

Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Adjustable Display Angle: Yes
Screen Mode: WXGA
Screen Size: 19"
Aspect Ratio: 16:9
Response Time: 5 ms

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1919LM
Product Name: 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 12.2"
Width: 13.8"
Depth: 6.9"
Color: White
Weight (Approximate): 15.21 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes
Headphone: Yes
Serial Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- FCC 18 Subpart B
- CUL
- CSA
- UL
- C-tick
- NOM
- ICES-003
- IEC/EN
- S-mark
- CE
- IC
- VCCI
- CSA
- CISPR 11
- FCC 18 Subpart B
- CUL
- CSA
- UL
- C-tick
- NOM
- ICES-003
- IEC/EN
- S-mark
- CE
- IC
- VCCI
- CSA
- CISPR 11
Package Contents:
- 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings
- CD and Quick Install Guide
- Touch and Video Cables
- DC Power Adapter
- USB Cable
- Power Cable
- Audio Cable
- VGA Cable
- DVI Cable
- 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings
- CD and Quick Install Guide
- Touch and Video Cables
- DC Power Adapter
- USB Cable
- Power Cable
- Audio Cable
- VGA Cable
- DVI Cable
Platform Supported: PC

Video

Standard Refresh Rate: 60 Hz
Brightness: 300 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1366 x 768
Contrast Ratio: 1,000:1

Power Description

Operating Power Consumption: 21.80 W
Input Voltage:
- 110 V AC
- 220 V DC

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Surface Acoustic Wave

Warranty

Limited Warranty: 3 Year

Audio

Speakers: Yes

Built-in Devices

Built-in Devices: Speaker

Extended Details

Elo 1919LM Touchscreen Part #: E872193 | SKU: ELO207658
