6346 Epson

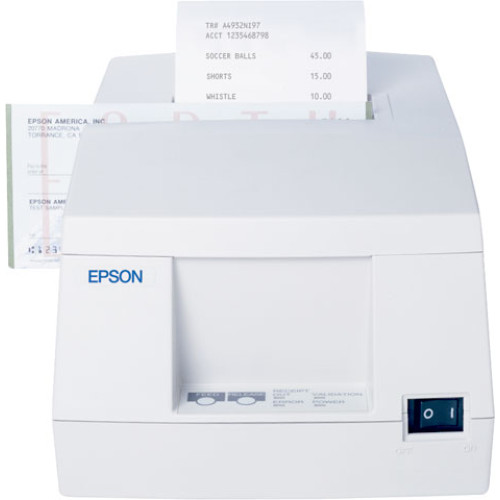

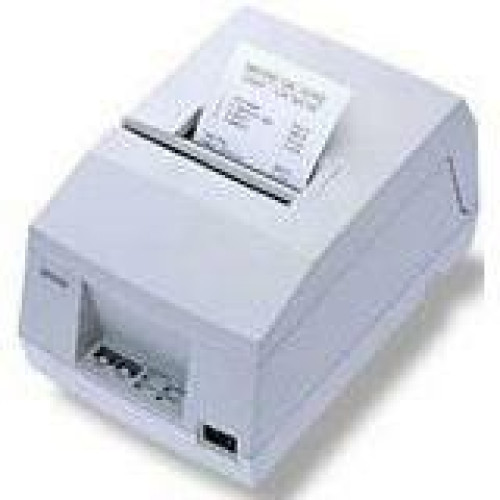

C223031 - Epson TM-U325 POS Printer

TM-U325, Impact, receipt & validation printing, 6.4 lps, parallel interface. Includes power supply. Order cables separately. See accessories. Color: white.
InStock
Free Shipping

Description

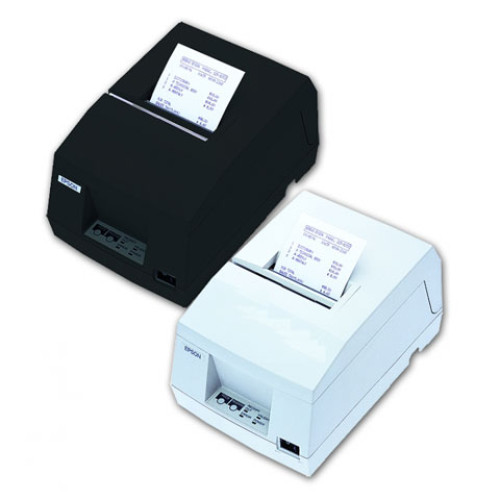

The TM-U325 can print receipts speedily thanks to its bi-directional print capability. 4 different models are offered, each tailored to meet a special needs and applications.
  • Compact and Light
  • Definable, Downloadable Fonts: With the receiving buffer setting at 45 bytes, there is no limit to the number of downloadable fonts that can be set
  • Fast, Quiet Printing: 6.4 lps
  • Superb Reliability
  • Two Types of Printing: Receipt and Multi-Line Validation (up to 9 Lines)
  • User-Friendly: Drop-In Roll-Paper Feeding

Additional Information

Item Condition New
Manufacturer Epson

General Information

  • Product Type: Dot Matrix Printer
  • Brand Name: Epson
  • Manufacturer: Epson Corporation
  • Product Model: TM-U325
  • Product Name: TM-U325 Dot Matrix Printer

Technical Information

  • Number of Columns: 42
  • Number of Pins: 9-pin

Physical Characteristics

  • Height: 5.4"
  • Width: 6.5"
  • Depth: 9.5"
  • Color:
    • White
    • Gray
  • Weight (Approximate): 5.07 lb

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • EMI Standards:
    • FCC class A
    • CE marking
    • Safety Standards:
    • UL
    • CSA
  • Additional Information:
    • Print Font: 7 x 9 or 9 x 9
    • Column Capacity: 40 or 42,33 or 35
    • Reliability (MCBF): 49 Million lines
    • Copy capability One original and two copies
    • Connect-It interfaces for system compatibility
    • Characters per inch 16 or 17.8 cpi,13.3 or 14.5 cpi
    • Character Set: 95 Alphanumeric, 32 International, 128 x 8 Graphic
    • Character Size 1.24 x 3.1mm (W x H),1.56 x 3.1mm (W x H); {0.049 x 0.122 ,0.061 x 0.122 }
    • Print Speed (Approximatly): 3.5 lps (at 40-column printing),6.4 lps (at 16-column printing)
    • Paper Dimensions (Maximum print lines 9 lines):
    • Receipt: 76±0.5 x diameter 83mm (2.99±0.02 x diameter 3.27 )
    • Validation: 135 to 182 x 70 to 182mm (W x L) {5.31 to 7.17 x 2.76 to 7.17 }
    • Paper Thickness:
    • Receipt 0.06 to 0.085mm,sheet thickness: 0.2mm or less
    • Validation 0.09 to 0.12mm,sheet thickness: 0.09 to 0.31mm

Memory

  • Standard Memory: 4 KB

Power Description

  • Operating Power Consumption: 43 W

Reliability

  • MTBF: 180000 Hour
