Epson Line Printer
Part #: C376101 | SKU: EPS37063

Products and parts from Epson.

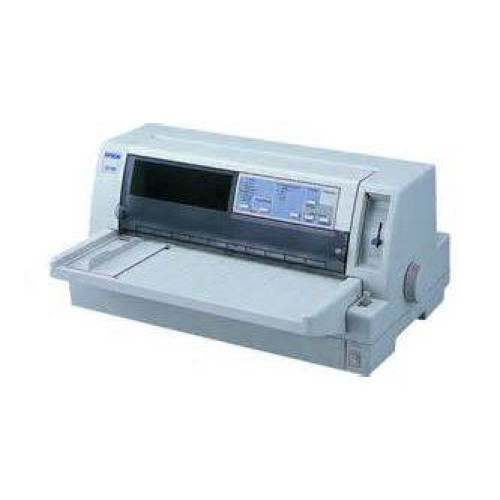

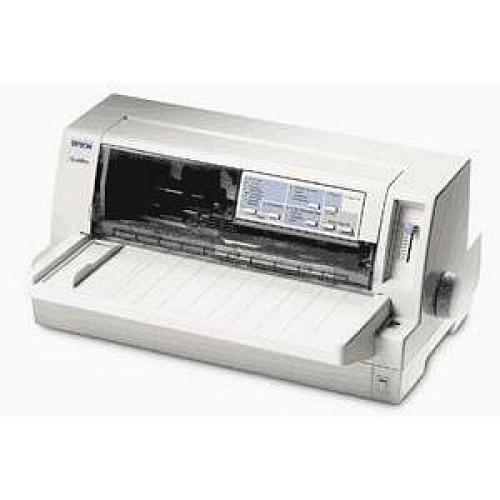

Epson Line Printer

Part Details: Dot Matrix Printer - Epson LQ-680 - Narrow - Parallel - 240 dpu - 64KB memory - Front Loading

Additional Information

Color Printing Color
Functions Copier/Printer/Scanner
Interface Options Parallel
Manufacturer Epson
Model Name Parts

General Information

  • Product Type: Dot Matrix Printer
  • Product Series: LQ
  • Brand Name: Epson
  • Manufacturer: Epson Corporation
  • Product Model: LQ-680 Pro
  • Product Name: LQ-680 Pro Dot Matrix Printer

Technical Information

  • Maximum Mono Print Speed (cps): 413 cps
  • Maximum Print Resolution: 360 x 360 dpi
  • Number of Pins: 24-pin

Physical Characteristics

  • Height: 9"
  • Width: 19.6"
  • Depth: 15.2"
  • Color: White
  • Weight (Approximate): 20.70 lb

Interfaces/Ports

  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • LQ-680Pro Printer
    • User Guide
    • Drivers (CD)
    • Ribbon
    • LQ-680Pro Printer
    • User Guide
    • Drivers (CD)
    • Ribbon
  • Certifications & Standards: EPA Energy Star
  • Additional Information:
    • Flatbed APG (Automatic Platen Gap) adjustment technology
    • Maximum Form Parts: 6
    • Character Sets:
    • 13 standard version
    • 39 NLSP version
    • 14 international character sets
    • Scalable Fonts:
    • EPSON Roman 8 to 32 points (every 2 pt)
    • EPSON Sans Serif 8 to 32 points (every 2 pt)
    • EPSON Roman T 8 to 32 points (every 2 pt)
    • EPSON Sans Serif H 8 to 32 points (every 2 pt)
    • Resident Bitmapped Fonts (cpi):
    • EPSON Draft 10 cpi, 12 cpi, 15 cpi
    • EPSON Roman 10 cpi, 12 cpi, 15 cpi, Proportional
    • EPSON Sans Serif 10 cpi, 12 cpi, 15 cpi, Proportional
    • EPSON Courier 10 cpi, 12 cpi, 15 cpi
    • EPSON Prestige 10 cpi, 12 cpi
    • EPSON Script 10 cpi
    • EPSON OCR-B 10 cpi
    • EPSON Orator 10 cpi
    • EPSON Orator-S 10 cpi
    • EPSON Script C Proportional
    • Paper Feed Mechanism:
    • Feeding method: Friction feed (front manual, rear cut sheet feeder), Push tractor feed (rear)
    • Feeder: Rear push tractor, Cut sheet feeder bin1/bin2 (option), Roll paper holder (option)
    • Paper Path:
    • Manual insertion (front in, front out)
    • Cut sheet feeder (rear in, front out)
    • Tractor (rear in, front out)
    • Paper Handling:
    • Cut sheet single sheet (front entry, manual insertion): Width 3.5" to 12", Length 2.8" to 16.5", Thickness 0.0025" to 0.0074"
    • Cut sheet multipart (front entry, manual insertion): Width 3.5" to 12", Length 2.8" to 16.5" (line glue on one side of the form, 11.7" maximum), Thickness 0.0047" to 0.018", Copies 1 original + 5 copies
    • Continuous paper: Width 4" to 12", Length (one page) 3" to 22", Thickness 0.0025" to 0.018", Copies 1 original + 5 copies
    • Continuous forms with labels: Base sheet width 4" to 12", Base sheet length 3" to 22", Total thickness 0.0075"

Media Types & Handling

  • Media Type:
    • Plain Paper
    • Continuous Form
    • Cut Sheet
    • Envelope
    • Roll Paper
  • Media Size:
    • Letter
    • Legal
    • A4
    • A5
    • A3
    • B4
    • Envelope No. 6
    • Envelope No. 10
  • Media Handling: Push Tractor Rear

Fonts & Emulation

  • Language Emulation:
    • Epson ESC/P2
    • IBM 2390 Plus

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet
  • LocalTalk: Yes

Power Description

  • Operating Power Consumption: 42 W
  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 64 KB
  • Maximum Memory: 64 KB

Warranty

  • Limited Warranty: 2 Year

Reliability

  • MTBF: 10000 Hour
Extended Details
