Additional Information
| Cards Per Day | 101 - 500 |
|---|---|
| Color Capability | Color |
| Encoding Technology | None |
| Lamination | None |
| Manufacturer AIDC | Fargo |
| Model Name | DTC4500e |
| Operating System | Linux, Windows |
| Print Resolution | 300 dpi |
| Printable Side | Dual-Sided |
| Printing Technology | Direct to Card |

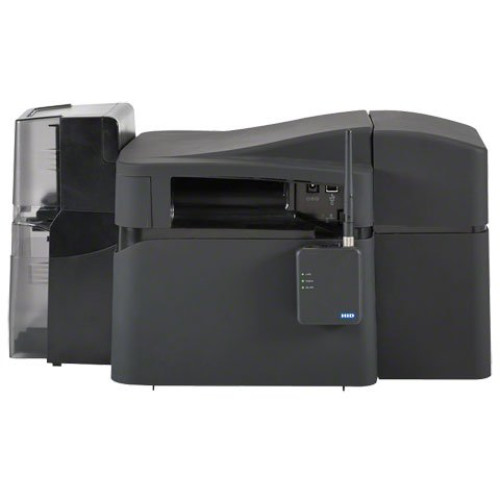

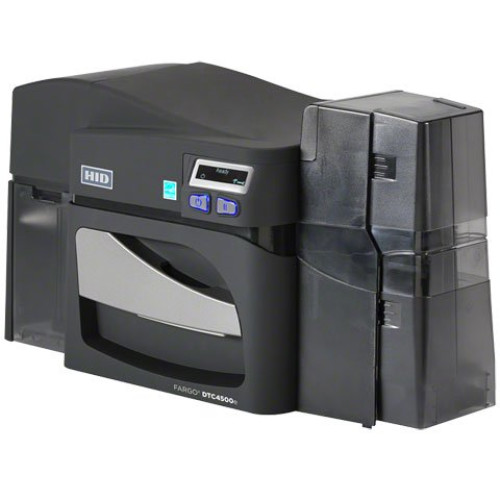

Fargo DTC4500e Specs
General Information
- Product Type: Dye Sublimation/Thermal Transfer Printer
- Product Series: DTC4000
- Brand Name: Fargo
- Manufacturer: HID Global Corporation
- Product Model: DTC4500E
- Product Name: DTC4500E ID Card Printer / Encoder Dual Sided
Technical Information
- Maximum Mono Print Speed: 6 Second
- Maximum Color Print Speed: 16 Second
- Maximum Print Resolution: 300 dpi
- Print Color: Color
- Maximum Print Width: 2.11"
- Recommended Use: Card Print
Physical Characteristics
- Height: 9.8"
- Width: 18.7"
- Depth: 9.2"
- Form Factor: Desktop
- Weight (Approximate): 11 lb
Interfaces/Ports
- USB: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: ENERGY STAR
- Platform Supported:
- PC
- Mac
- Package Contents:
- DTC4500E ID Card Printer / Encoder Dual Sided
- Software CD
- DTC4500E ID Card Printer / Encoder Dual Sided
- Software CD
- Certifications & Standards:
- UL 60950-2
- CSA C22.2 (60950-07)
- CE
- EMC
- FCC Class A
- CE (EN 55022 Class A, EN 55024)
- CCC
- BSMI
- KC
Media Types & Handling
- Media Type:
- Adhesive Backed Card
- PVC Card
- Polyester Card
- Optical Media Card
- Media Load Type: Auto Feed
- Media Size:
- 2.13" x 3.38" - CR-80 Card
- 2.06" x 3.31" - CR79 Card
- Media Thickness: 40 mil
- Media Handling:
- 1 x Input Hopper 200 Card
- 1 x Output Hopper 100 Card
- 1 x Reject Hopper 100 Card
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Memory
- Standard Memory: 32 MB
Warranty
- Limited Warranty: 3 Year
Display & Graphics
- Display Screen Type: LCD
Recommended Accessories for Model: Fargo DTC4500e ID Card Printer
-
Fargo DTC4500e
Part #: 47701 | SKU: FAR266991iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121) Factory Upgrade, for DTC4250e and DTC4500e. This part is also known as 047701.Price: $1,038.22 -
Fargo DTC4500e
Part #: 47706 | SKU: FAR266995HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125) Factory Upgrade, for DTC4250e and DTC4500e. This part is also known as 047706.Price: $1,765.39 -
Fargo DTC4500e
Part #: 47435 | SKU: FAR266988Dual-Side Printing Module for DTC4250e and DTC4500e. This part is also known as 047435.MSRP: $1,439.62 Price: $891.99 -
Fargo DTC4500e
Part #: 53723 | SKU: FAR266998Single-Sided Lamination Module (Dual-Side Printing Module Included) for the DTC4500e. This part is also known as 053723.MSRP: $3,425.71 Price: $2,571.99 -
Fargo DTC4500e
Part #: 53724 | SKU: FAR266999Dual-Sided Simultaneous Lamination Module (Dual-Side Printing Module Included) for the DTC4500e. This part is also known as 053724.MSRP: $4,800.69 Price: $3,565.99
Recommended Printheads for Model: Fargo DTC4500e ID Card Printer
-
Fargo Printheads
Part #: 47500 | SKU: FAR117185DTC 1000, 4000 & 4500, Printhead (for DTC 1000, 4000 and 4500 DTC Printers)MSRP: $884.00 Price: $593.99
Recommended Ribbons for Model: Fargo DTC4500e ID Card Printer
-
Fargo DTC4500e
Part #: 45200 | SKU: FAR100680Fargo DTC4500 ID Card Printer Ribbons, YMCKO (Yellow, Magenta, Cyan, Black, And Overlay) Full-Color With Resin Black And Clear Overlay Panel Ribbon, Dtc4500, Dtc4500E Compatible, 500 Images, Priced Per Roll.MSRP: $214.20 Price: $160.99 -
Fargo DTC4500
Part #: 45201 | SKU: FAR100681Ribbon, Premium Black K, 3000 images. For DTC4500MSRP: $160.65 Price: $111.99 -
Fargo DTC4500
Part #: 45202 | SKU: FAR100682Ribbon, Standard Black K, 3000 images. For DTC4500MSRP: $66.15 Price: $38.99 -
Fargo DTC4500e
Part #: 45215 | SKU: FAR100685ID card ribbon, Fargo DTC4500, YMCKK, full-color ribbon with two resin black panels, 500 images, one cartridge.MSRP: $291.90 Price: $222.99 -
Fargo DTC4500e
Part #: 45203 | SKU: FAR116833Ribbon, Blue Ribbon Cartridge, 2000 images per roll. The ribbon is used to print in one monochrome color: blue. This ribbon is used to print text and one-color images one or both sides of the card. Compatible with DTC4500, DTC4500e. This part is also known as 045203.MSRP: $74.99 Price: $72.99
Recommended Warranties for Model: Fargo DTC4500e ID Card Printer
-
Fargo DTC4500e Service Contract
Part #: 86191 | SKU: FAR267003On-Call Express Extension for printers without Lamination Module. This part is also known as 086191.MSRP: $876.00 Price: $853.25 -
Fargo DTC4500e Service Contract
Part #: 86193 | SKU: FAR267004On-Call Express Extension for printers with Lamination Module. This part is also known as 086193.MSRP: $1,061.00 Price: $1,033.44
