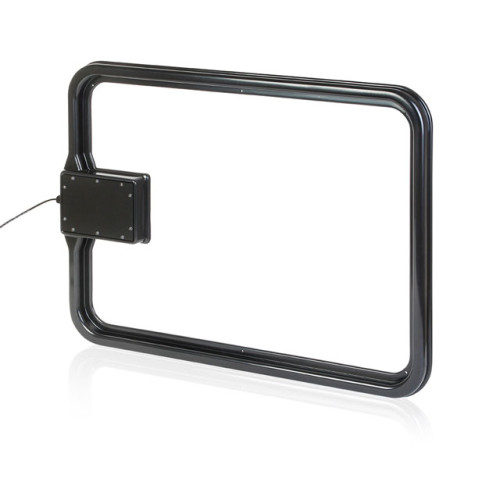

FEIG ID ANT800/600 RFID Antenna

The FEIG HF Long Range Antenna ID ANT800 / 600-DA can be used in combination with the reader ID LR(M)1002 and ID LR(M)2500. The ID ANT800 / 600-DA is a single loop antenna with tuning circuitry and facilitates read ranges of up to 100 cm with a transmitting power of 4 W. After installing in changed ambient conditions, the ID ANT800 / 600-DA can be tuned using the corresponding commands. The ID ANT800 / 600-DA consists of the electrical antenna conductor, housing and the tuning circuitry ID DAT (Tuner) and is factory tuned on a wood base to an impedance of 50 ohm.
