| Manufacturer | GeoVision |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Network Camera
- Brand Name: GeoVision
- Manufacturer: GeoVision, Inc
- Product Model: GV-MFD520

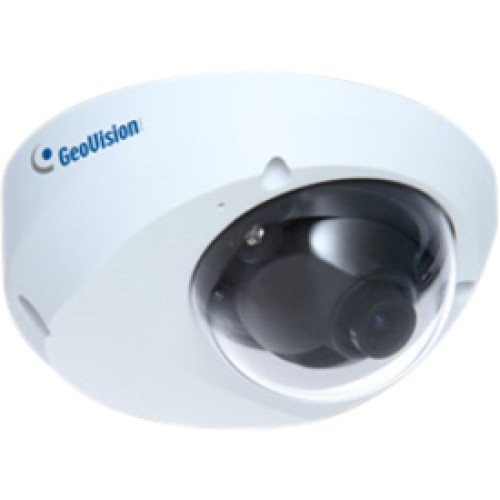

- Product Name: GV-MFD520 Network Camera
Physical Characteristics
- Diameter: 4.2"
- Height: 2.2"
- Weight (Approximate): 9.88 oz
Interfaces/Ports
- Network (RJ-45): Yes
Network & Communication
- Ethernet Technology: Fast Ethernet
- Connectivity Technology: Cable
- Protocols:
- HTTP
- HTTPS
- TCP
- UDP
- SMTP
- FTP
- DHCP
- NTP
- UPnP
- DDNS
- 3GPP
- ISMA
- RTSP
- PSIA
- SNMP
- QoS
- DSCP
- Ethernet: Yes
Display & Graphics
- Tilt: 0° to 90°
- Image Sensor Type: CMOS
- Swivel: -45° to 45°
- Color Supported: Color
- Illumination: 0.5 Lux
- White Balance Modes:
- Auto
- Manual
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- CE
- FCC
- C-Tick
- Security Features: IP address filtering
Video
- Maximum Video Resolution: 2560 x 1920
- Video Formats:
- MPEG-4
- Motion JPEG
Lens
- Lens Mount Type: S-mount
- Focal Length: 2.54 mm
- Focus Modes: Fixed Focus
- Aperture Range: f/2.8
Exposure
- Longest Shutter Speed: 1/5 Second
- Shortest Shutter Speed: 1/8000 Second
Power Description
- Maximum Power Consumption: 4.20 W
Audio
- Audio Formats: AAC
