24884 Hand Held

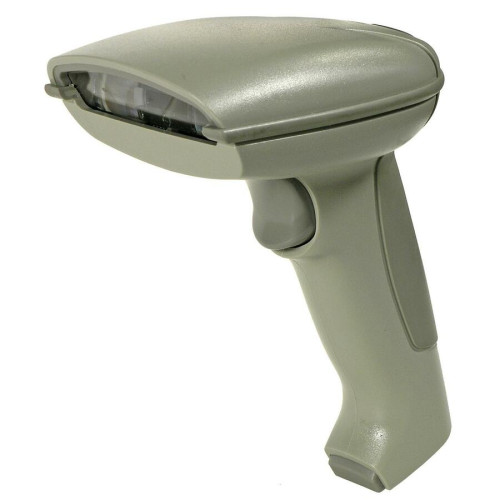

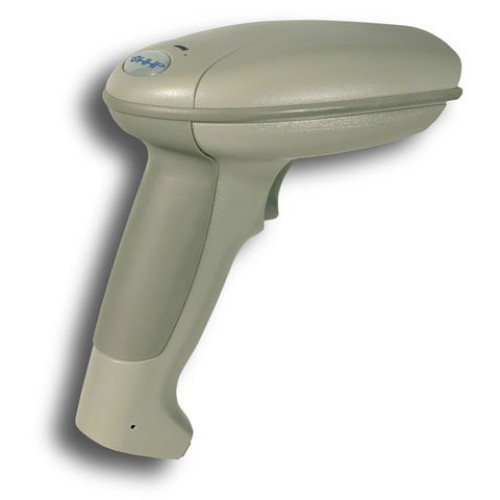

3800LR-12E - Hand Held ImageTeam 3800 Bar code Scanner

ImageTeam 3800, Long range High performance linear imager, Long range, Linear imager, Commercial interface, No User Guide.
InStock
Free Shipping

Description

The ImageTeam 3800 is a high performance handheld bar code scanner. Using unique linear imaging technology the ImageTeam 3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The ImageTeam 3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The ImageTeam 3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The ImageTeam 3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.
  • Modern Design - Attractive styling compliments most existing POS environments, while user comfort is enhanced by the smooth handle curves, soft molded grip area, and comfortable trigger.
  • Real World Reading Performance - Accommodates printer induced bar space variation, faded labels, short quiet zones, low contrast codes, dot matrix printing, and multipart forms with higher resolution, better optics, and improved decoding algorithms.
  • Bright, Sharp and Focused Aiming Line - Easy to aim and scan codes in any lighting condition from darkness to full sunlight, tightly stacked barcode sheets, or small, high resolution labels.
  • Increased Reading Distances - Easily covers the full range of handheld scanning uses in point of sale and general purpose scanning applications.
  • Powerful, Flexible Architecture - Connects and interfaces to all major PCs, commercial and retail POS terminals easily and quickly with Windows based programming tools or barcode programming menus.
  • Solid, Rugged Design - No moving parts inside and solid construction outside deliver years of reliable service in demanding work environments.

Additional Information

Manufacturer Hand Held
Scanner Type Imager
Scanner Capability 1D

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 4"@3 mil - 100% UPC
    • 2.50" - 6.50"@5 mil
    • 2" - 7.50"@7.50 mil
    • 1" - 9.50"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800LR
  • Product Name: 3800LR Barcode Reader

Physical Characteristics

  • Height: 6"
  • Width: 3.1"
  • Depth: 5.3"
  • Color: Beige
  • Weight (Approximate): 6.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 3800LR Barcode Reader
    • 10 ft.USB Type A Coiled Cable
    • 3800LR Barcode Reader
    • 10 ft.USB Type A Coiled Cable
  • Certifications & Standards:
    • RoHS Compliance
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1
    • LED Safety:
    • Class 1
    • UL
    • cUL
    • TUV
  • Platform Supported:
    • PC
    • Mac
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • RS-232
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
