Hand Held ImageTeam 3870 Barcode Scanner Hand Held ImageTeam 3870 Barcode Scanner Hand Held ImageTeam 3870 Barcode Scanner

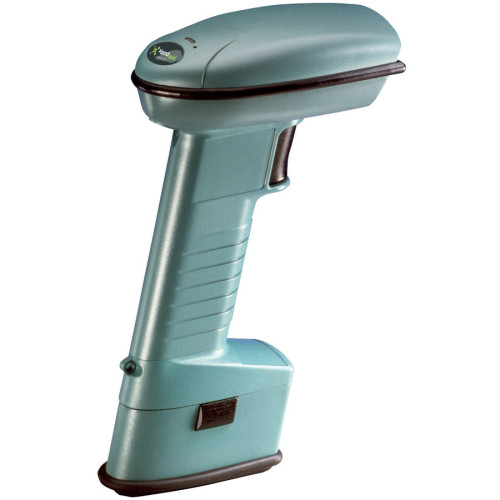

Hand Held ImageTeam 3870 Barcode Scanner
Part #: 3870PDF-A2 | SKU: HAN15853

Hand-Held is pleased to introduce linear imaging technology in a cordless scanner. A bright sharp aiming line and high-resolution imaging combine to deliver barcode reading performance that was previously only possible using a laser scanner. The ImageTeam 3870 joins a family of rugged and reliable cordless products including the SCANTEAM 2070 host interface base unit. The ImageTeam 3870 reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.

Hand Held ImageTeam 3870 Barcode Scanner

Part Details: ImageTeam 3870, PDF417 Reader, Software, NIMH, Charge Pack CLESS/NIMH/S and Quick Start Guide
Need a different version of the Hand Held ImageTeam 3870 Barcode Scanner? View all 3 configurations

Additional Information

Manufacturer AIDC Hand Held
Model Name ImageTeam 3870
Scanner Capability 1D
Hand Held ImageTeam 3870 Specs Hand Held ImageTeam 3870 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 128
    • ISBT 128
    • UPC-E
    • UPC
    • EAN/JAN
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 11
    • Telepen
    • RSS
    • ISBN
    • PDF 417
    • Micro PDF-417
    • EAN-UCC Composite
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Connectivity: Cordless
  • Cordless Range: 100'
  • Scan Pattern: Linear
  • Input Voltage Range: 4 to 14 V DC

General Information

Physical Characteristics

  • Dimensions:
    • 8.5" (215.9mm) - Scanner
    • 8.5" (215.9mm) x - Scanner
  • Weight: 16 oz - Scanner

Agency Approvals

  • Agency Approvals:
    • EMC 89/336/EEC
    • EN 50082-1:1992
    • IEC 801-2:1991
    • IEC 801-3:1984
    • IEC 801-4:1988
    • USA: FCC Part 15 Class B
    • Canada: SOR 88/475 Class B
    • Europe: EN 55022 (CISPR22) Class B
    • EN 61000-3-2 & -3
    • ETS 300 826
    • USA: UL listed
    • C22.2 No 950/UL 1950
    • Canada: cUL Listed
    • Europe: TUV Rheinland GS Licensed
    • EN 60950 (IEC950)
    • Australia: AS/NZS 3548
    • USA: FCC Part 15.249
    • Canada: RSS 210
    • Europe: ETS 300 328

Other

  • Package Contents:
    • IMAGETEAM 3870 Barcode Scanner
    • Charge Pack
    • Quick Start Guide

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -30°C (-22°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
